TPS26400RHFR - Texas Instruments

Description: 42-V, 2-A industrial eFuse with integrated reverse input polarity protection

Download TPS26400RHFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

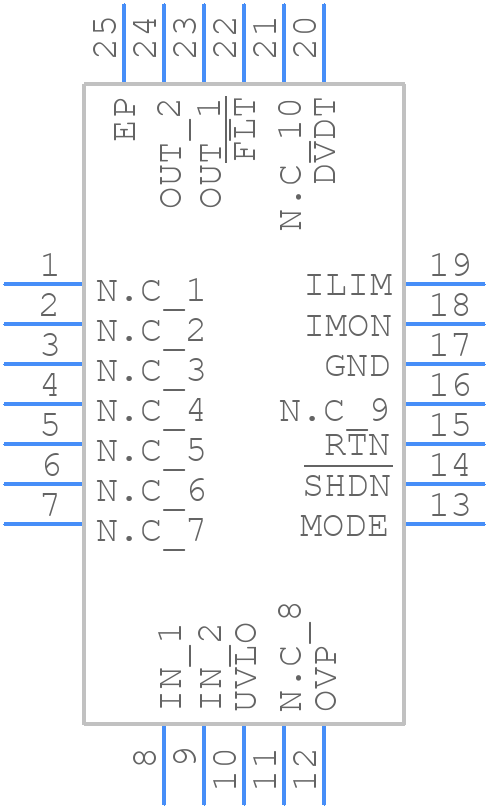

TPS26400RHFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26400RHFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom
3D Models
TPS26400RHFR - Texas Instruments - 3D model - Quad Flat No-Lead - RHF (R-PVQFN-N24)
click to zoom

TPS26400RHFR Details

  • Manufacturer Part Number:

    TPS26400RHFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2020-12-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    42 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    42 V

  • Supply Voltage-Min (Vsup):

    4.2 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26400RHFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26400RHFR involves placing the input capacitors close to the VIN pin, and the output capacitors close to the VOUT pin. Additionally, the power traces should be wide and short to minimize inductance and resistance. A solid ground plane is also recommended to reduce noise and improve thermal performance.
  • The input capacitor should have a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of at least 10uF. The output capacitor should have a voltage rating of at least 1.5 times the output voltage, and a capacitance value of at least 22uF. The capacitor's ESR (Equivalent Series Resistance) should be low to minimize voltage ripple and ensure stability.
  • The maximum ambient temperature for the TPS26400RHFR is 85°C. However, the device can operate at higher temperatures with derating. It's recommended to follow the thermal derating curve in the datasheet to ensure reliable operation.
  • The power dissipation of the TPS26400RHFR can be calculated using the formula: Pd = (VIN x IIN) - (VOUT x IOUT). Where Pd is the power dissipation, VIN is the input voltage, IIN is the input current, VOUT is the output voltage, and IOUT is the output current.
  • The recommended input voltage range for the TPS26400RHFR is 2.7V to 5.5V. Operating the device outside of this range may affect its performance and reliability.
