TPS26601RHFR - Texas Instruments

Description: 60V 2A Industrial eFuse With Integrated Reverse-Input Polarity Protection

Download TPS26601RHFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

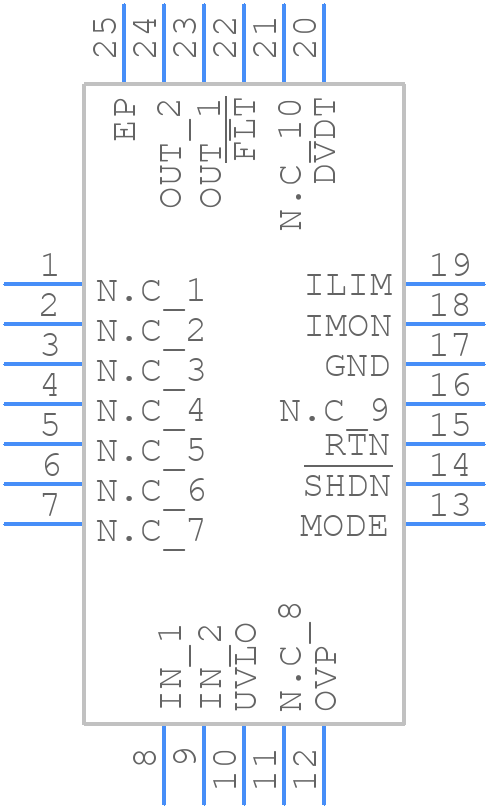

TPS26601RHFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26601RHFR - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RHF0024A
click to zoom
3D Models
TPS26601RHFR - Texas Instruments - 3D model - Quad Flat No-Lead - RHF0024A
click to zoom

TPS26601RHFR Details

  • Manufacturer Part Number:

    TPS26601RHFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-01-25

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Equivalence Code:

    LCC24,.16X.2,20

  • Package Shape:

    RECTANGULAR

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26601RHFR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26601RHFR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be selected based on the input voltage, output current, and ripple current requirements. A low-ESR capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. X5R or X7R ceramic capacitors are good options.
  • The TPS26601RHFR can deliver up to 3A of output current, but this is dependent on the input voltage, output voltage, and thermal conditions. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS26601RHFR can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formula provided in the datasheet, and the output voltage can be adjusted from 0.8V to 5.5V.
  • The TPS26601RHFR has a thermal shutdown feature that protects the device from overheating. The device should be operated within the recommended operating temperature range, and a thermal pad or heat sink may be required for high-current applications.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26601RHFR Overview

Use the download button to access the TPS26601RHFR schematic symbol, PCB footprint, and 3D model.
