TPS26602PWPT - Texas Instruments

Description: 60V 2A Industrial eFuse With Integrated Reverse-Input Polarity Protection

Download TPS26602PWPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

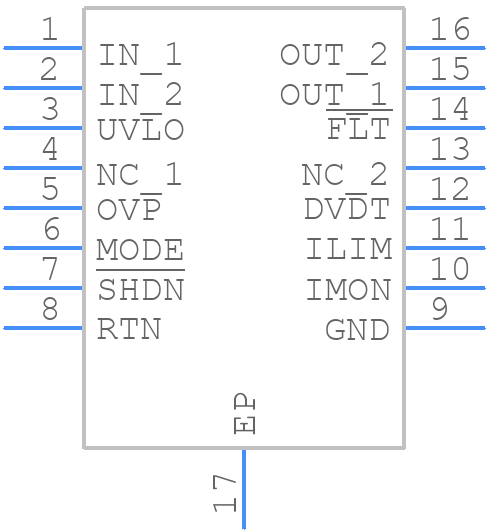

TPS26602PWPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26602PWPT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - pwp 16
click to zoom
3D Models
TPS26602PWPT - Texas Instruments - 3D model - Small Outline Packages - pwp 16
click to zoom

TPS26602PWPT Details

  • Manufacturer Part Number:

    TPS26602PWPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-09-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.2 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    2.23 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP16,.25

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    4.5 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS26602PWPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26602PWPT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of 10uF to 22uF. X5R or X7R ceramic capacitors are recommended for their low ESR and high reliability.
  • The TPS26602PWPT can deliver up to 2A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Be sure to check the thermal derating curves in the datasheet to ensure reliable operation.
  • The output voltage of the TPS26602PWPT can be adjusted by connecting a resistor divider network between the VOUT pin and the GND pin. The datasheet provides a formula to calculate the required resistor values for a given output voltage.
  • The EN (enable) pin is used to turn the regulator on or off. When the EN pin is high, the regulator is enabled, and when it is low, the regulator is disabled. This pin can be used to implement power sequencing or to turn off the regulator during shutdown.
