Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A good starting point is to use X7R or X5R ceramic capacitors with a voltage rating of at least 2x the input voltage, and a capacitance value of 10uF to 22uF for the input capacitor and 10uF to 47uF for the output capacitor.
The TPS26611DDFR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within its specified thermal limits.
To troubleshoot issues with the TPS26611DDFR, start by checking the input voltage, output voltage, and current draw. Verify that the device is properly soldered and that the PCB layout is correct. Use an oscilloscope to check for voltage ripple, noise, or oscillations. Check the thermal design and ensure that the device is properly cooled. Consult the datasheet and application notes for troubleshooting guidelines and tips.
Yes, the TPS26611DDFR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's recommended to consult with Texas Instruments and to follow the specific requirements and guidelines for the target application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26611DDFR Overview

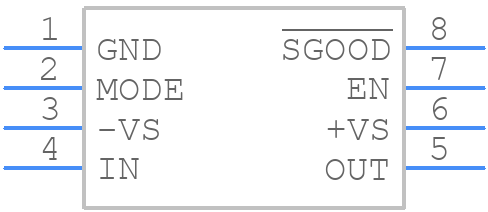

Use the download button to access the TPS26611DDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26,
or try a keyword search, such as Power Management Circuits
