Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. A good starting point is to use capacitors with a voltage rating of at least 2x the input voltage, and an ESR of less than 100 mΩ. X5R or X7R ceramic capacitors are good options.
The TPS26612DDFR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's essential to ensure that the device's junction temperature does not exceed 150°C.
The TPS26612DDFR has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCP pin and the GND pin. The value of the resistor determines the overcurrent threshold. It's also important to ensure that the device's power dissipation is within the specified limits.
Yes, the TPS26612DDFR is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's essential to follow the recommended design and layout guidelines, and to perform thorough testing and validation to ensure the device meets the specific application requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26612DDFR Overview

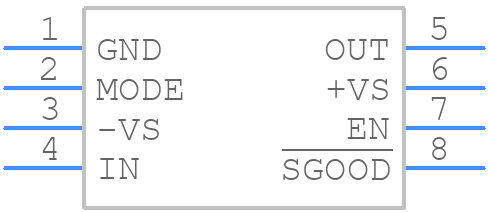

Use the download button to access the TPS26612DDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26,
or try a keyword search, such as Power Management Circuits
