Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency layout guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as ripple current, voltage rating, and ESR. A good starting point is to use X5R or X7R ceramic capacitors with a voltage rating of at least 1.5 times the input voltage, and an ESR of less than 100 mΩ.
The TPS26622DRCR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to perform thermal simulations to ensure the device operates within its specified temperature range.
The TPS26622DRCR has a specific power-up and power-down sequence that must be followed to ensure proper operation. The EN pin should be pulled high to enable the device, and the input voltage should be applied before the output voltage. During power-down, the EN pin should be pulled low before the input voltage is removed.
The recommended input voltage range for the TPS26622DRCR is 2.7V to 5.5V, but the device can operate from 2.3V to 5.5V. However, the output voltage regulation and efficiency may be affected at lower input voltages.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26622DRCR Overview

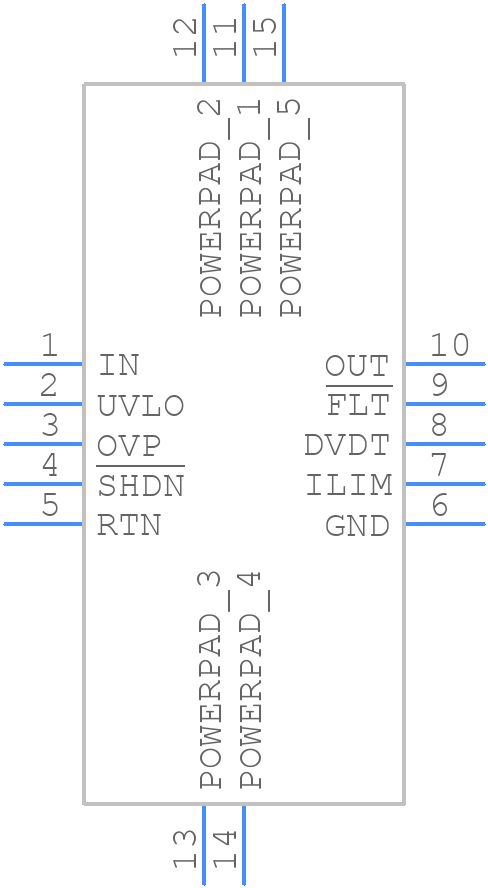

Use the download button to access the TPS26622DRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26,
or try a keyword search, such as Power Management Circuits
