Description:Hot Swap Voltage Controllers 4.5-V to 60-V, 478mΩ, 0.025-0.88A eFuse with integrated input and output reverse polarity p 10-VSON -40 to 125
The maximum input voltage that can be applied to the TPS26624DRCR is 60V, but it's recommended to operate within the recommended input voltage range of 4.5V to 40V for optimal performance and reliability.
To ensure proper configuration, carefully review the datasheet and application notes, and consider factors such as input voltage, output voltage, current requirements, and thermal management. It's also recommended to consult with a Texas Instruments field application engineer or a qualified design expert.
The TPS26624DRCR has a thermal pad that must be connected to a thermal plane on the PCB to ensure proper heat dissipation. A thermal interface material (TIM) can be used to improve thermal conductivity. Additionally, ensure good airflow around the device and consider using a heat sink if necessary.
The TPS26624DRCR is a high-reliability device, but it's essential to follow proper design and manufacturing guidelines to ensure the device meets the required safety and reliability standards for your specific application. Consult with a qualified design expert and review relevant industry standards and regulations.
To troubleshoot issues, start by reviewing the datasheet and application notes, and then follow a systematic approach to identify the root cause. Check the input voltage, output voltage, and current levels, and verify that the device is properly configured and thermally managed. Use oscilloscopes and other diagnostic tools to analyze the device's behavior and identify potential issues.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26624DRCR Overview

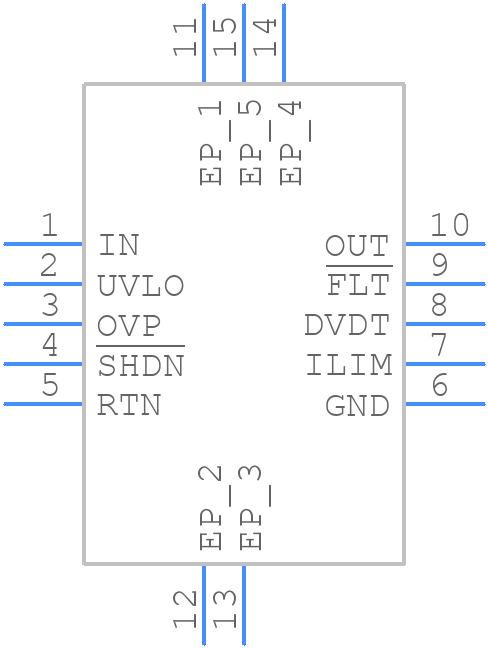

Use the download button to access the TPS26624DRCR schematic symbol, PCB footprint, and 3D model.
