SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
1.7 mA
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
60 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS26631PWPR Frequently Asked Questions (FAQs)
A good PCB layout for the TPS26631PWPR involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
When selecting an inductor for the TPS26631PWPR, consider the inductor's saturation current, DC resistance, and core material. A good starting point is to choose an inductor with a saturation current rating of at least 1.5 times the maximum output current, and a DC resistance of less than 100 mΩ.
The TPS26631PWPR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. In general, the device can operate up to 85°C ambient temperature with proper cooling.
To troubleshoot issues with the TPS26631PWPR, start by checking the input voltage, output voltage, and current. Verify that the input capacitors are properly sized and placed, and that the inductor is not saturating. Check for thermal issues by measuring the device temperature and ensuring proper airflow.
Yes, the TPS26631PWPR is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications, and is suitable for use in high-reliability systems.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26631PWPR Overview

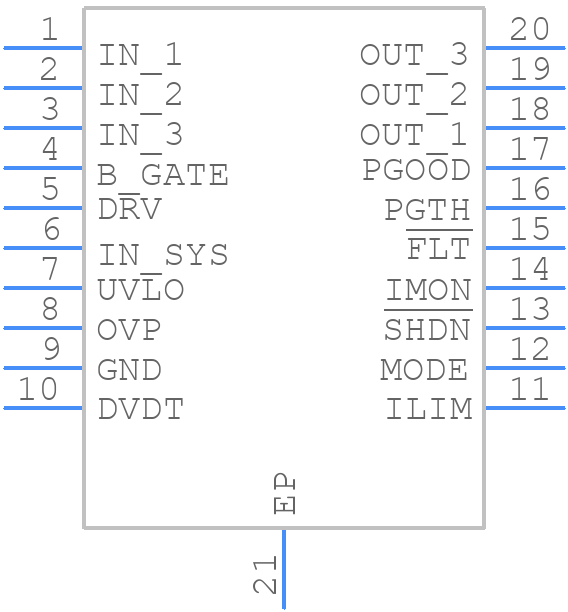

Use the download button to access the TPS26631PWPR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
