TPS26631RGER - Texas Instruments

Description: 4.5-V-60-V, 31mΩ, 0.6-6A eFuse with output power limiting and surge protection

Download TPS26631RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

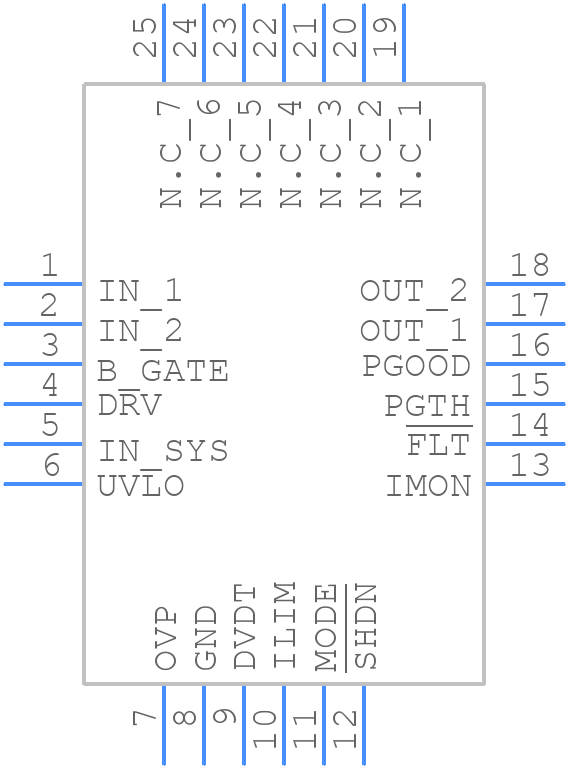

TPS26631RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26631RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - TPS26631RGER/
click to zoom
3D Models
TPS26631RGER - Texas Instruments - 3D model - Quad Flat No-Lead - TPS26631RGER/
click to zoom

TPS26631RGER Details

  • Manufacturer Part Number:

    TPS26631RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26631RGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26631RGER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a dedicated ground plane is recommended.
  • The input capacitor should be selected based on the input voltage, output current, and ripple current requirements. A low-ESR capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. X5R or X7R ceramic capacitors are good options.
  • The TPS26631RGER can deliver up to 3A of output current, but this depends on the input voltage, output voltage, and thermal conditions. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS26631RGER can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formulae provided in the datasheet.
  • The EN pin is an active-high enable input that allows the device to be turned on or off. When the EN pin is high, the device is enabled, and when it is low, the device is disabled.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26631RGER Overview

Use the download button to access the TPS26631RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
