TPS26632RGER - Texas Instruments

Description: Hot Swap Voltage Controllers 4.5-V to 60-V, 31m , 0.6-6A eFuse with output power limiting and surge protection 24-VQFN -40 to 125

Download TPS26632RGER Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

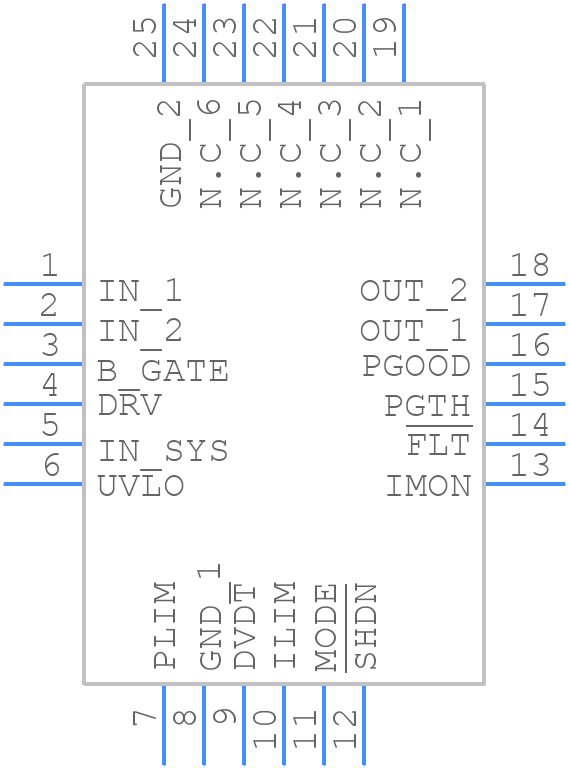

TPS26632RGER - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26632RGER - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-021
click to zoom
3D Models
TPS26632RGER - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-021
click to zoom

TPS26632RGER Details

  • Manufacturer Part Number:

    TPS26632RGER

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    HVQCCN,

  • Reach Compliance Code:

    Compliant

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-04-03

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26632RGER Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26632RGER involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • The input capacitor should be selected based on the input voltage, output current, and ripple current requirements. A low-ESR capacitor with a voltage rating of at least 1.5 times the maximum input voltage is recommended. X5R or X7R ceramic capacitors are good options.
  • The TPS26632RGER can deliver up to 3A of output current, but this depends on the input voltage, output voltage, and thermal conditions. The device should be operated within the recommended operating conditions to ensure reliable operation.
  • The output voltage of the TPS26632RGER can be configured using the FB pin and an external resistor divider network. The resistor values can be calculated using the formulae provided in the datasheet.
  • The TPS26632RGER has a thermal shutdown feature that turns off the device when the junction temperature exceeds 150°C. The device should be operated within the recommended thermal conditions, and a heat sink may be required for high-power applications.
