SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
1.2 mm
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
60 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Temperature Grade:
AUTOMOTIVE
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS26633PWPR Frequently Asked Questions (FAQs)
The TPS26633PWPR can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
To ensure proper configuration, carefully review the datasheet and application notes, and consider factors such as input voltage, output voltage, and current requirements. Additionally, consult with TI's technical support or a qualified engineer if needed.
The TPS26633PWPR can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet for specific current ratings and thermal derating.
Proper thermal management is crucial for the TPS26633PWPR. Ensure good airflow, use a heat sink if necessary, and follow the thermal design guidelines outlined in the datasheet and application notes.
The TPS26633PWPR is a high-voltage, high-current power switch with specific features such as overcurrent protection, undervoltage lockout, and thermal shutdown. Compare the datasheets and application notes of similar devices to determine the best fit for your specific application.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS26633PWPR Overview

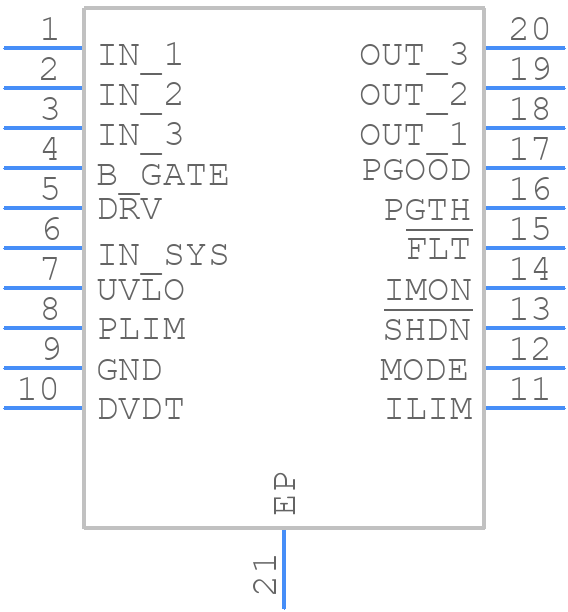

Use the download button to access the TPS26633PWPR schematic symbol, PCB footprint, and 3D model.
