TPS26633PWPT - Texas Instruments

Description: Hot Swap Voltage Controllers 4.5-V to 60-V, 31m , 0.6-6A eFuse with output power limiting and surge protection 20-HTSSOP -40 to 125

Download TPS26633PWPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

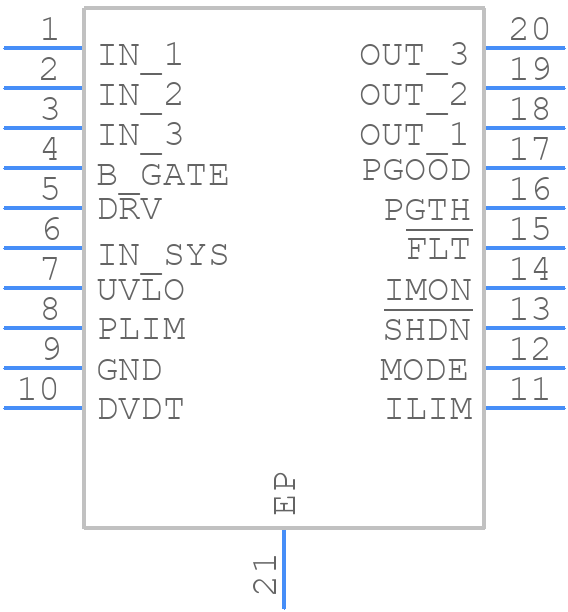

TPS26633PWPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26633PWPT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020T
click to zoom
3D Models
TPS26633PWPT - Texas Instruments - 3D model - Small Outline Packages - PWP0020T
click to zoom

TPS26633PWPT Details

  • Manufacturer Part Number:

    TPS26633PWPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS26633PWPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26633PWPT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. TI provides a recommended layout in the datasheet and in application notes.
  • Choose input capacitors with a voltage rating of at least 1.5 times the maximum input voltage, and a capacitance value of at least 10uF. X5R or X7R ceramic capacitors are recommended due to their low ESR and high ripple current capability.
  • The TPS26633PWPT can deliver up to 3A of output current, but this depends on the input voltage, output voltage, and thermal conditions. Refer to the datasheet for detailed current ratings and thermal derating curves.
  • The TPS26633PWPT has a fixed output voltage option, but you can also use an external resistor divider network to set the output voltage. Refer to the datasheet for the resistor calculation formula and example circuits.
  • The EN (enable) pin is used to turn the regulator on or off. Connect the EN pin to VIN to enable the regulator, or to GND to disable it. You can also use an external logic signal to control the EN pin.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26633PWPT Overview

Use the download button to access the TPS26633PWPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
