TPS26633RGET - Texas Instruments

Description: 60V, 6A Power Limiting, Surge Protection Industrial eFuse

Download TPS26633RGET Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

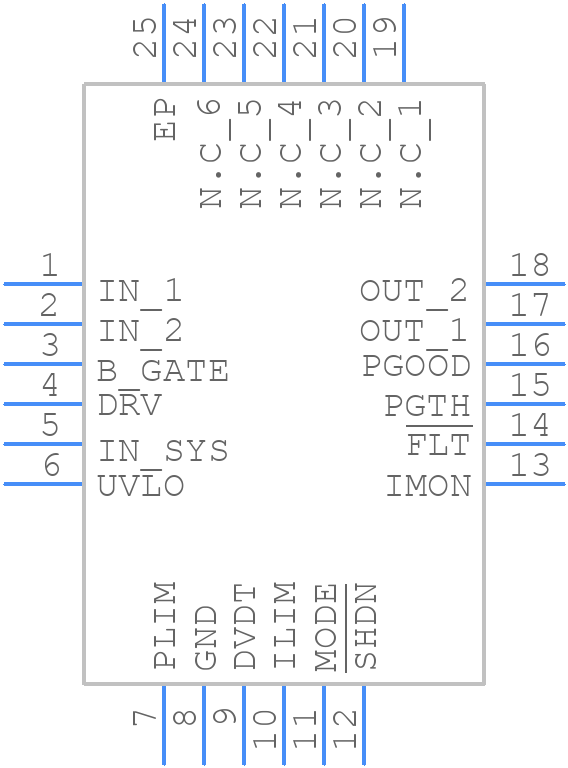

Symbol
TPS26633RGET - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26633RGET - Texas Instruments PCB footprint - Quad Flat No-Lead - Quad Flat No-Lead - RGE0024H-1
click to zoom
3D Models
TPS26633RGET - Texas Instruments - 3D model - Quad Flat No-Lead - RGE0024H-1
click to zoom

TPS26633RGET Details

  • Manufacturer Part Number:

    TPS26633RGET

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    S-PQCC-N24

  • JESD-609 Code:

    e4

  • Length:

    4 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    24

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVQCCN

  • Package Shape:

    SQUARE

  • Package Style:

    CHIP CARRIER, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    QUAD

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4 mm

TPS26633RGET Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26633RGET involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended layout in the datasheet and application notes.
  • Choose input capacitors with a high ripple current rating and low ESR. Output capacitors should have a high capacitance value and low ESR. TI recommends using ceramic or polymer capacitors with a voltage rating of at least 2x the input voltage.
  • The TPS26633RGET is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. Ensure proper thermal design and heat sinking to maintain a safe operating temperature.
  • Yes, the TPS26633RGET is AEC-Q100 qualified and suitable for automotive and high-reliability applications. However, ensure that the device is used within its specified operating conditions and that the system design meets the required safety and reliability standards.
  • Use an oscilloscope to monitor the input and output voltages, and check for signs of oscillation or ringing. Verify that the input voltage is within the recommended range, and ensure proper thermal design and heat sinking. Consult the datasheet and application notes for troubleshooting guidelines.
