TPS26636PWPT - Texas Instruments

Description: 60-V, 6-A Power Limiting, Surge Protection Industrial eFuse

Download TPS26636PWPT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

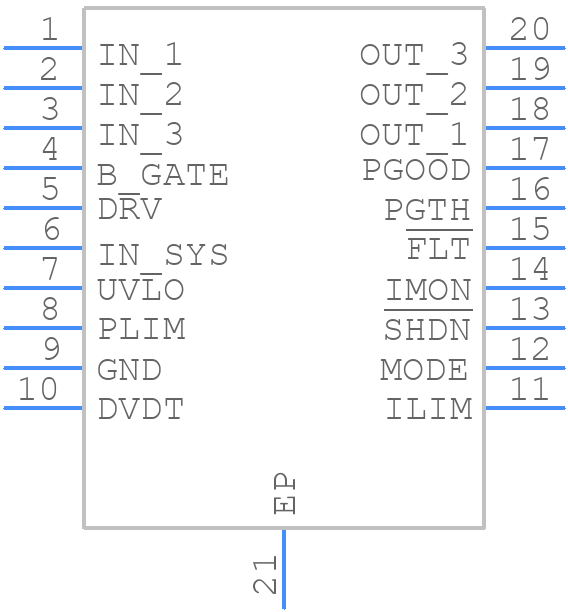

Symbol
TPS26636PWPT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS26636PWPT - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0020T HTSSOP-20
click to zoom
3D Models
TPS26636PWPT - Texas Instruments - 3D model - Small Outline Packages - PWP0020T HTSSOP-20
click to zoom

TPS26636PWPT Details

  • Manufacturer Part Number:

    TPS26636PWPT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2019-09-28

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    eFUSE

  • Input Voltage-Max:

    60 V

  • Input Voltage-Min:

    4.5 V

  • JESD-30 Code:

    R-PDSO-G20

  • JESD-609 Code:

    e4

  • Length:

    6.5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    20

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    6 A

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    250

  • Seated Height-Max:

    1.2 mm

  • Supply Voltage-Max (Vsup):

    60 V

  • Supply Voltage-Min (Vsup):

    60 V

  • Supply Voltage-Nom (Vsup):

    24 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS26636PWPT Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS26636PWPT involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the high-current paths short and wide. A 4-layer PCB with a dedicated power plane is recommended.
  • Choose input capacitors with a voltage rating of at least 2x the maximum input voltage, and a capacitance value of 10uF to 22uF. X5R or X7R ceramic capacitors are recommended due to their low ESR and high ripple current capability.
  • The TPS26636PWPT can deliver up to 3A of output current, but this may vary depending on the input voltage, output voltage, and thermal conditions. Be sure to check the thermal derating curves in the datasheet to ensure the device can handle the required output current.
  • The TPS26636PWPT has a fixed output voltage option, but you can also use an external resistor divider network to set the output voltage. Use the formula in the datasheet to calculate the required resistor values for your desired output voltage.
  • The EN (enable) pin is used to turn the device on and off. Connect the EN pin to a logic-level signal (e.g., from a microcontroller) to enable or disable the device. When EN is low, the device is in shutdown mode and consumes minimal power.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS26636PWPT Overview

Use the download button to access the TPS26636PWPT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS26, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
