CURRENT LIMIT:6.3A; THERMAL SHUTDOWN:185C; ADJUSTABLE CURRENT LIMIT
Adjustable Threshold:
YES
Analog IC - Other Type:
LOAD SWITCH
JESD-30 Code:
S-PDSO-N12
JESD-609 Code:
e4
Length:
4 mm
Moisture Sensitivity Level:
2
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
12
Operating Temperature-Max:
125 °C
Operating Temperature-Min:
-40 °C
Output Current-Max:
5 A
Package Body Material:
PLASTIC/EPOXY
Package Code:
HVSON
Package Equivalence Code:
SOLCC12,.16,20
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE
Peak Reflow Temperature (Cel):
260
Seated Height-Max:
0.8 mm
Supply Voltage-Max (Vsup):
60 V
Supply Voltage-Min (Vsup):
6 V
Supply Voltage-Nom (Vsup):
24 V
Surface Mount:
YES
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
NO LEAD
Terminal Pitch:
0.5 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
4.5
Time@Peak Reflow Temperature-Max (s):
30
Width:
4 mm
TPS281C100ADNTR Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency layout guidelines, such as keeping the input and output traces short and away from each other, using a solid ground plane, and minimizing vias and thermal reliefs.
To ensure stability, follow the datasheet's guidelines for output capacitance, input capacitance, and feedback resistors. Additionally, make sure the output voltage is within the recommended range, and the input voltage is within the specified operating range. You can also use the TI Power Stage Designer tool to help with stability analysis.
The maximum ambient temperature for the TPS281C100ADNTR is 85°C, but it's recommended to derate the device's power dissipation at higher temperatures to ensure reliability and prevent thermal shutdown.
The TPS281C100ADNTR is an industrial-grade device, but it's not specifically designed for high-reliability or automotive applications. For such applications, consider using devices with higher reliability ratings, such as the TPS281C100QDNTR or other automotive-grade devices from Texas Instruments.
Use an oscilloscope to measure the input and output voltages, as well as the switching node voltage. Check for proper PCB layout, component selection, and soldering. Consult the datasheet and application notes for troubleshooting guidelines, and consider using TI's Power Stage Designer tool to simulate and analyze the design.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS281C100ADNTR Overview

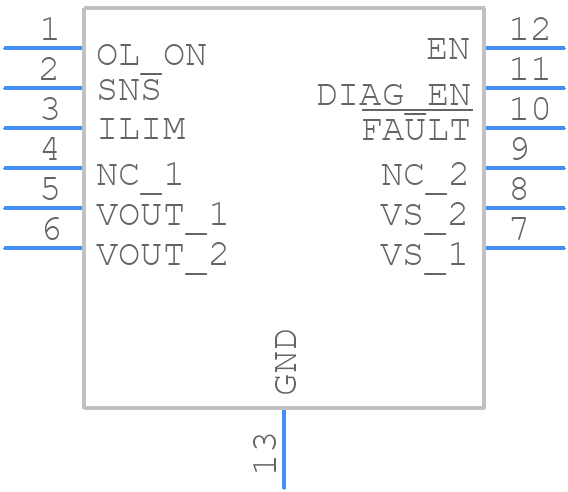

Use the download button to access the TPS281C100ADNTR schematic symbol, PCB footprint, and 3D model.
