TPS3435CAIEGDDFR - Texas Instruments

Description: Timers & Support Products Nano-quiescent-current precision watchdog timer

Download TPS3435CAIEGDDFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

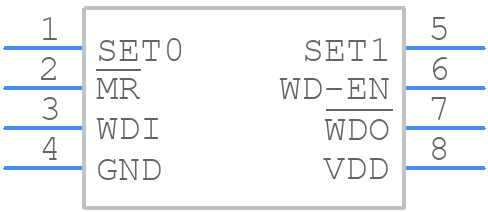

Symbol
TPS3435CAIEGDDFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3435CAIEGDDFR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DDF0008A_2023
click to zoom
3D Models
TPS3435CAIEGDDFR - Texas Instruments - 3D model - SOT23 (8-Pin) - DDF0008A_2023
click to zoom

TPS3435CAIEGDDFR Details

  • Manufacturer Part Number:

    TPS3435CAIEGDDFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    MNL RST:Y;PW FL IO:N;PRG RST DLY:Y;WD:Y/N;WDO:Y;WWD:Y

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.003 mA

  • Supply Voltage-Max (Vsup):

    6 V

  • Supply Voltage-Min (Vsup):

    0.7 V

  • Supply Voltage-Nom (Vsup):

    1.04 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm
