The TPS3510DG4 is a sensitive device and requires careful layout and placement to ensure proper operation. TI recommends placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide. Additionally, it's essential to follow the recommended PCB layout guidelines provided in the datasheet and application notes.
The output capacitor selection depends on the output voltage, output current, and desired ripple voltage. TI recommends using a low-ESR capacitor with a value between 10uF to 22uF. A higher capacitance value can help reduce output ripple voltage, but may increase the startup time. It's essential to check the capacitor's datasheet for its ESR, voltage rating, and temperature characteristics.
The TPS3510DG4 has an absolute maximum input voltage rating of 18V. However, the recommended operating input voltage range is 4.5V to 15V. Exceeding the maximum input voltage can damage the device. It's essential to ensure that the input voltage is within the recommended range to guarantee reliable operation.
The TPS3510DG4 has a built-in overcurrent protection feature that limits the output current to 2.5A. However, if you need to implement additional overcurrent protection, you can use an external current sense resistor and a comparator to detect overcurrent conditions. TI provides an application note (SLVAE04) that details an overcurrent protection circuit using the TPS3510DG4.
The TPS3510DG4 has a thermal derating curve that indicates the maximum power dissipation at different ambient temperatures. The curve is provided in the datasheet and shows that the device can dissipate up to 2.5W at 25°C, but the power dissipation decreases as the temperature increases. It's essential to ensure that the device operates within the thermal derating curve to prevent overheating and damage.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3510DG4 Overview

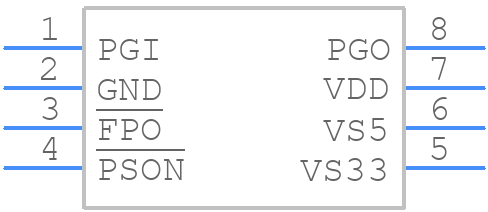

Use the download button to access the TPS3510DG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS35,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
