TPS3510P - Texas Instruments

Description: TPS3510P, Voltage Supervisor 3-channel 2.2V PC Power Supply 8-Pin PDIP

Download TPS3510P Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

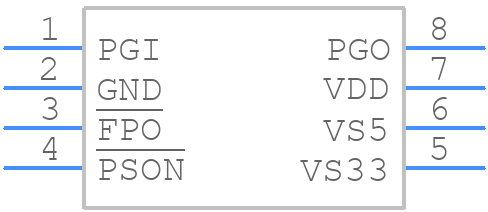

Symbol
TPS3510P - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3510P - Texas Instruments PCB footprint - Dual-In-Line Packages - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom
3D Models
TPS3510P - Texas Instruments - 3D model - Dual-In-Line Packages - P (R-PDIP-T8)
click to zoom

TPS3510P Details

  • Manufacturer Part Number:

    TPS3510P

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    DIP

  • Pin Count:

    8

  • Country Of Origin:

    Mexico

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDIP-T8

  • JESD-609 Code:

    e4

  • Length:

    9.81 mm

  • Number of Channels:

    3

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    DIP

  • Package Equivalence Code:

    DIP8,.3

  • Package Shape:

    RECTANGULAR

  • Package Style:

    IN-LINE

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    5.08 mm

  • Supply Current-Max (Isup):

    1 mA

  • Supply Voltage-Max (Vsup):

    15 V

  • Supply Voltage-Min (Vsup):

    4 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    NO

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    THROUGH-HOLE

  • Terminal Pitch:

    2.54 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +2.2V

  • Width:

    7.62 mm

TPS3510P Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS3510P involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. A 4-layer PCB with a solid ground plane is recommended. Additionally, the device should be placed away from high-current carrying traces and noise sources.
  • To ensure stability, the TPS3510P requires a minimum output capacitance of 10uF, and the output capacitor should be placed close to the device. Additionally, the input capacitor should be at least 1uF and placed close to the input pin. The device should also be decoupled from the power source using a 1uF capacitor.
  • The TPS3510P can handle a maximum input voltage of 18V. However, it is recommended to operate the device within the recommended input voltage range of 2.7V to 15V for optimal performance and reliability.
  • The TPS3510P is rated for operation up to 125°C. However, the device's performance and reliability may degrade at high temperatures. It is recommended to derate the device's output current and voltage at high temperatures to ensure reliable operation.
  • The output voltage of the TPS3510P can be calculated using the following formula: Vout = 1.22 x (1 + R1/R2), where R1 and R2 are the resistors used in the feedback network. The output voltage can be adjusted by changing the ratio of R1 and R2.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3510P Overview

Use the download button to access the TPS3510P schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS35, or try a keyword search, such as Power Management Circuits
