- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TPS3511D
- Part Number TPS3511D
- Manufacturer Texas Instruments
- Pin Count 8
- Part Category Integrated Circuit
- Package Category Small Outline Packages
- Footprint Name Small Outline Packages - D0008A (2021)
- Released Date May 10, 2021
- Last Modified Date Mar 7, 2023 4:10 PM UTC
- Pinout / Pin List Click Here (Member Only)
TPS3511D Details
-
Manufacturer Part Number:
TPS3511D
-
Brand Name:
Texas Instruments
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Obsolete
-
Part Package Code:
SOIC
-
Pin Count:
8
-
Country Of Origin:
Mexico
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.60
-
Manufacturer:
Texas Instruments
-
YTEOL:
0
TPS3511D Frequently Asked Questions (FAQs)
-
The recommended layout for the TPS3511D involves placing the input capacitors close to the VIN pin, using a solid ground plane, and keeping the output capacitors close to the VOUT pin. Additionally, it's recommended to use a separate power plane for the input and output to minimize noise coupling.
-
The choice of input and output capacitors depends on the specific requirements of your application. For the input capacitor, a low-ESR ceramic capacitor with a value between 1uF to 10uF is recommended. For the output capacitor, a low-ESR ceramic capacitor with a value between 1uF to 22uF is recommended. The capacitor values should be chosen based on the output voltage, output current, and desired ripple voltage.
-
The TPS3511D can handle input voltages up to 15V, but it's recommended to operate within the specified input voltage range of 2.7V to 12V for optimal performance and reliability.
-
The output voltage of the TPS3511D can be adjusted by using a resistive divider network between the VOUT pin and the GND pin. The output voltage is determined by the ratio of the resistors in the divider network. The recommended resistor values are R1 = 10kΩ and R2 = 2.2kΩ for a 3.3V output voltage.
-
The TPS3511D can deliver up to 1A of output current, but it's recommended to operate within the specified output current range of 0.1A to 0.5A for optimal performance and reliability.
Trust Checks
Community Provided
System Verified
Community Approved
TPS3511D Overview

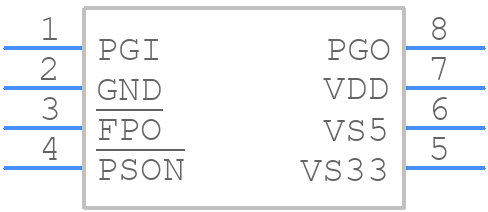

Use the download button to access the TPS3511D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS35,
or try a keyword search, such as Power Management Circuits
