Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The input capacitor selection depends on the input voltage, output voltage, and desired ripple current. A general rule of thumb is to choose a capacitor with a voltage rating at least 1.5 times the input voltage, and a capacitance value that meets the recommended ripple current specification.
The TPS35AA17AGADDFR has a maximum ambient temperature rating of 85°C, but it's essential to consider the device's thermal performance and derate the output current accordingly to ensure reliable operation.
The TPS35AA17AGADDFR is an automotive-grade device, but it's essential to review the device's AEC-Q100 qualification and ensure it meets the specific requirements of your application. Additionally, consider the device's fault tolerance, diagnostic capabilities, and compliance with relevant industry standards.
The TPS35AA17AGADDFR has a built-in OVP feature, but it's essential to understand the OVP threshold and hysteresis to ensure proper implementation. Additionally, consider using external components, such as a voltage supervisor or a dedicated OVP IC, to provide additional protection and flexibility.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS35AA17AGADDFR Overview

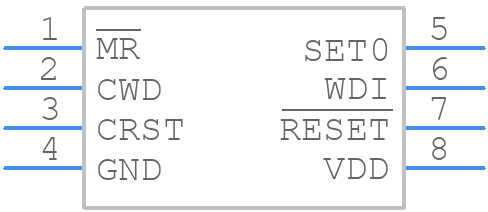

Use the download button to access the TPS35AA17AGADDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS35,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
