RESET THRESHOLD VOLTAGE IS 2.22V; MANUAL RESET, POWER-ON RESET GENERATOR
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY BACKUP SUPERVISOR
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.04 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
2.5 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.22V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS3600D25PW Frequently Asked Questions (FAQs)
Texas Instruments recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the top layer.
To ensure reliable operation at high temperatures, it's essential to follow the recommended thermal design guidelines, including proper heat sinking, thermal interface material selection, and avoiding thermal hotspots. Additionally, consider derating the device's power dissipation at high temperatures.
The maximum allowed voltage on the EN (enable) pin is 6 V. Exceeding this voltage may damage the device. It's recommended to use a voltage limiter or a resistor divider network to ensure the EN pin voltage remains within the specified range.
While the TPS3600D25PW is designed for high-current applications, it's essential to ensure the device is properly heat-sunk and the PCB is designed to handle high currents. Additionally, consider the device's power dissipation and thermal limitations to avoid overheating.
To troubleshoot issues with the TPS3600D25PW, start by verifying the input voltage, output voltage, and enable pin voltage. Check for proper PCB layout, thermal design, and component selection. Use oscilloscopes and thermal imaging tools to identify potential issues. Consult the datasheet and application notes for guidance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3600D25PW Overview

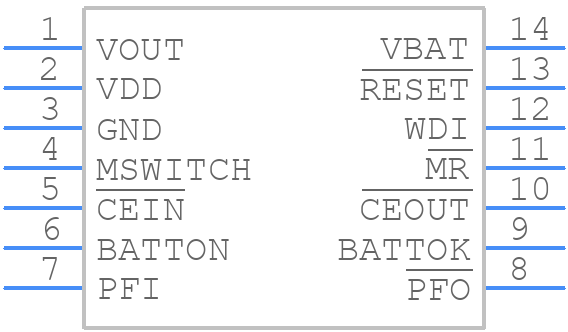

Use the download button to access the TPS3600D25PW schematic symbol, PCB footprint, and 3D model.
