RESET THRESHOLD VOLTAGE IS 2.93V; MANUAL RESET, POWER-ON RESET GENERATOR
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY BACKUP SUPERVISOR
JESD-30 Code:
R-PDSO-G14
JESD-609 Code:
e4
Length:
5 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
14
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP14,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Supply Current-Max (Isup):
0.04 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.93V
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS3600D33PW Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's essential to follow good thermal design practices, such as using a solid ground plane, placing thermal vias under the device, and keeping the thermal path short and direct.
The TPS3600D33PW requires a bias voltage between 2.7V and 5.5V. Ensure the bias voltage is stable and within the recommended range. Also, follow the datasheet's guidelines for input and output capacitors to ensure proper filtering and decoupling.
The TPS3600D33PW can deliver up to 3A of output current. However, the actual output current capability depends on the input voltage, output voltage, and thermal conditions. Be sure to check the datasheet's electrical characteristics and thermal derating curves to determine the maximum output current for your specific application.
The TPS3600D33PW has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO) features. However, it's still recommended to add external protection circuitry, such as a voltage supervisor or a crowbar circuit, to ensure the device is protected from voltage transients and faults.
Texas Instruments recommends using a low-ESR ceramic capacitor with a value between 4.7μF and 10μF for the input capacitor. The capacitor should be placed as close as possible to the device's input pins to minimize parasitic inductance and ensure good filtering.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3600D33PW Overview

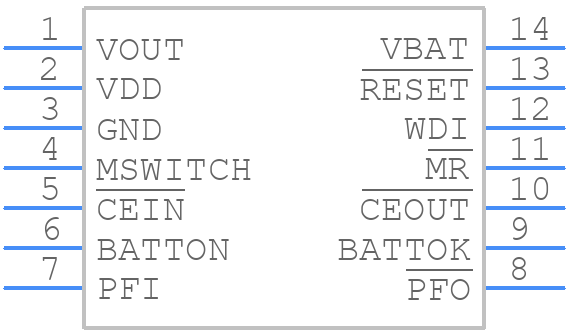

Use the download button to access the TPS3600D33PW schematic symbol, PCB footprint, and 3D model.
