Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general high-frequency PCB design guidelines, such as using a solid ground plane, minimizing trace lengths, and using vias to connect the input and output capacitors to the ground plane.
The choice of input and output capacitors depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
While the datasheet specifies an operating temperature range of -40°C to 125°C, the maximum ambient temperature for reliable operation depends on the specific application and the device's power dissipation. As a general rule, it's recommended to derate the device's power dissipation by 1-2% per degree Celsius above 85°C to ensure reliable operation.
The TPS3606-33DGSR has a specific power-up and power-down sequence that must be followed to ensure proper operation. The datasheet provides some guidance on this, but it's also recommended to consult the application notes and to carefully review the device's startup and shutdown timing diagrams.
Common pitfalls to avoid include not following the recommended PCB layout, not using the correct input and output capacitors, not properly decoupling the device, and not following the recommended power-up and power-down sequence. It's also important to carefully review the device's datasheet and application notes to ensure that the design meets all the necessary requirements.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3606-33DGSR Overview

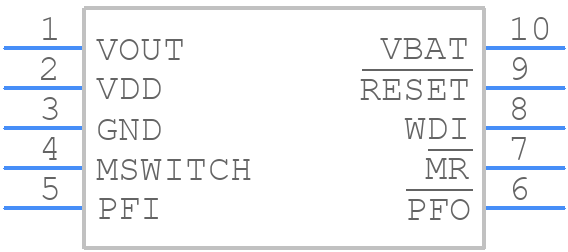

Use the download button to access the TPS3606-33DGSR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS36,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
