Texas Instruments provides a recommended PCB layout in the datasheet, but it's also recommended to follow general guidelines for high-frequency switching regulators, such as keeping the power traces short and wide, using a solid ground plane, and placing the input and output capacitors close to the device.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and output current. In general, low-ESR capacitors with high ripple current ratings are recommended. The datasheet provides some guidance on capacitor selection, but it's also recommended to consult the capacitor manufacturer's datasheet and application notes.
The TPS3610T50PWR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the device's power dissipation. It's recommended to consult the datasheet and perform thermal analysis to ensure the device operates within its specified temperature range.
The TPS3610T50PWR has a built-in overcurrent protection feature that limits the output current to a maximum value. However, it's recommended to implement additional overcurrent protection using an external current sense resistor and a comparator or a dedicated overcurrent protection IC to provide more precise control and flexibility.
The TPS3610T50PWR is a commercial-grade device, but it can be used in high-reliability or automotive applications with proper design and validation. It's recommended to consult the datasheet and Texas Instruments' application notes for guidance on using the device in these applications, and to ensure that the device meets the specific requirements and standards.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3610T50PWR Overview

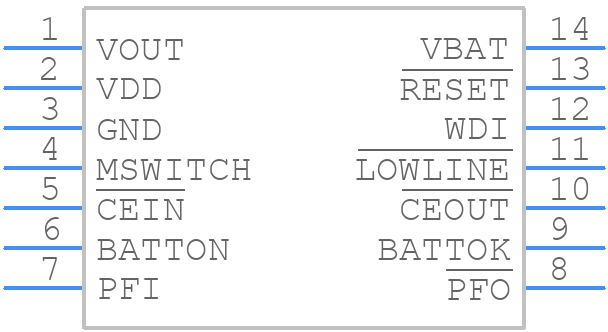

Use the download button to access the TPS3610T50PWR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS36,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
