MANUAL RESET; POWER ON RESET GENERATOR; VOLTAGE MONITOR FOR POWER-FAIL OR LOW-BATTERY MONITORING
Adjustable Threshold:
NO
Analog IC - Other Type:
BATTERY BACKUP SUPERVISOR
JESD-30 Code:
S-PDSO-G8
JESD-609 Code:
e4
Length:
3 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
TSSOP
Package Equivalence Code:
TSSOP8,.19
Package Shape:
SQUARE
Package Style:
SMALL OUTLINE, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.1 mm
Supply Current-Max (Isup):
0.04 mA
Supply Voltage-Max (Vsup):
5.5 V
Supply Voltage-Min (Vsup):
1.65 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.55V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3 mm
TPS3619-50DGK Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general guidelines for high-frequency PCB design, such as keeping the power traces short and wide, using a solid ground plane, and minimizing vias and thermal reliefs.
The output capacitor should be chosen based on the desired output voltage ripple, output current, and operating frequency. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. Additionally, the capacitor's ESR (Equivalent Series Resistance) should be low enough to minimize voltage ripple.
The TPS3619-50DGK has an absolute maximum input voltage rating of 18V, but it's recommended to operate the device within the recommended input voltage range of 4.5V to 15V to ensure reliable operation and minimize the risk of damage.
The TPS3619-50DGK has a built-in overcurrent protection feature that can be enabled by connecting a resistor between the OCSET pin and the output voltage. The value of the resistor determines the overcurrent threshold, and the device will shut down if the output current exceeds this threshold.
The thermal derating curve for the TPS3619-50DGK is not explicitly provided in the datasheet, but it can be estimated based on the device's thermal resistance and maximum junction temperature. As a general rule, the device's output current should be derated by 1-2% per degree Celsius above 25°C to ensure reliable operation.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3619-50DGK Overview

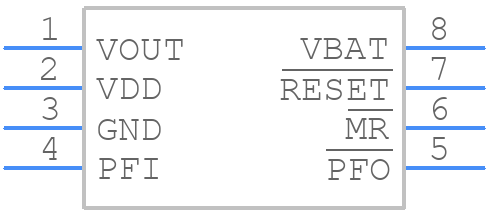

Use the download button to access the TPS3619-50DGK schematic symbol, PCB footprint, and 3D model.
