TPS3700DDCR2 - Texas Instruments

Description: TPS3700 18V Window Supervisor with Internal Ref for Overvoltage and Undervoltage Detection

Download TPS3700DDCR2 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

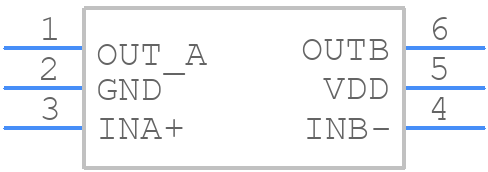

Symbol
TPS3700DDCR2 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3700DDCR2 - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - 6-Pin SOT
click to zoom
3D Models
TPS3700DDCR2 - Texas Instruments - 3D model - SOT23 (6-Pin) - 6-Pin SOT
click to zoom

TPS3700DDCR2 Details

  • Manufacturer Part Number:

    TPS3700DDCR2

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOT

  • Pin Count:

    6

  • Country Of Origin:

    Mainland China, Malaysia, Philippines, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    WINDOW VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    2

  • Number of Functions:

    2

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.013 mA

  • Supply Voltage-Max (Vsup):

    18 V

  • Supply Voltage-Min (Vsup):

    1.8 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.4V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS3700DDCR2 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS3700DDCR2 involves placing the device close to the power source, using a solid ground plane, and keeping the input and output traces short and wide to minimize inductance and resistance. Additionally, it's recommended to use a 10uF ceramic capacitor between the VIN and GND pins to filter out noise.
  • The output capacitor should be chosen based on the desired output voltage ripple, output current, and operating frequency. A general rule of thumb is to use a capacitor with a capacitance value of at least 10uF and a voltage rating of at least 1.5 times the output voltage. X5R or X7R ceramic capacitors are good options.
  • The TPS3700DDCR2 can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and minimize power dissipation.
  • The output voltage of the TPS3700DDCR2 can be adjusted by using a resistive divider network between the output pin and the ground pin. The output voltage is determined by the ratio of the resistors and the internal reference voltage of 0.8V.
  • The thermal derating curve for the TPS3700DDCR2 is not explicitly stated in the datasheet, but it's recommended to derate the output current by 1.5mA/°C above 25°C to ensure reliable operation.
