TPS37042A3OFDDFRQ1 - Texas Instruments

Description: Supervisory Circuits Automotive multichan nel window supervis TSOT-23-8 , 1.2V, 3.3V , -40°C ~ 125°C (TA)

Download TPS37042A3OFDDFRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

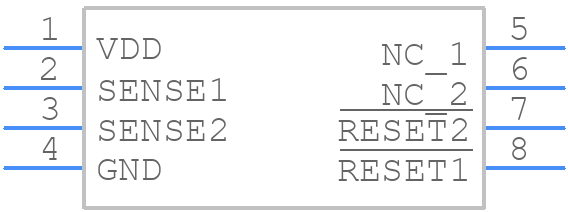

Symbol
TPS37042A3OFDDFRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS37042A3OFDDFRQ1 - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DDF0008A_2025
click to zoom
3D Models
TPS37042A3OFDDFRQ1 - Texas Instruments - 3D model - SOT23 (8-Pin) - DDF0008A_2025
click to zoom

TPS37042A3OFDDFRQ1 Details

  • Manufacturer Part Number:

    TPS37042A3OFDDFRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.1

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1.1 mm

  • Supply Voltage-Max (Vsup):

    5.5 V

  • Supply Voltage-Min (Vsup):

    1.7 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +3.3V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS37042A3OFDDFRQ1 Frequently Asked Questions (FAQs)

  • The DELAY pin is used to adjust the delay time between the detection of an undervoltage condition and the assertion of the reset output. This allows the system to recover from a brief undervoltage event without triggering a reset.
  • The reset threshold voltage should be chosen based on the specific requirements of the system. Typically, it should be set to a voltage slightly above the minimum operating voltage of the microcontroller or processor. TI provides a voltage threshold selection guide to help with this decision.
  • The TPS37042A3OFDDFRQ1 is a more advanced version of the TPS3700 series, offering improved accuracy, faster reset timing, and additional features such as a delay capacitor pin and a manual reset input.
  • Yes, the TPS37042A3OFDDFRQ1 is compatible with systems operating at 3.3V, 5V, or other voltages. The device has a wide operating voltage range of 1.8V to 6.5V, making it suitable for a variety of applications.
  • The TPS37042A3OFDDFRQ1 has a built-in POR function that asserts the reset output during power-up. To handle this, ensure that the reset output is properly connected to the microcontroller or processor, and that the system is designed to handle the POR signal correctly.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS37042A3OFDDFRQ1 Overview

Use the download button to access the TPS37042A3OFDDFRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits
