RESET THRESHOLD VOLTAGE IS 2.93V; POWER ON RESET GENERATOR; MANUAL RESET INPUT
Adjustable Threshold:
NO
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
1
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.05 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
3.3 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+2.93V
Time@Peak Reflow Temperature-Max (s):
NOT SPECIFIED
Width:
3.9 mm
TPS3707-33DG4 Frequently Asked Questions (FAQs)
The maximum input voltage that can be applied to the TPS3707-33DG4 is 18V, but it's recommended to keep it below 15V for reliable operation.
The output capacitor value depends on the output voltage and current requirements. A general rule of thumb is to use a capacitor with a value between 10uF to 22uF, with a voltage rating of at least 2x the output voltage. For example, for a 3.3V output, use a 10uF to 22uF capacitor with a voltage rating of 6.3V or higher.
The EN (Enable) pin is used to turn the regulator on or off. When the EN pin is pulled high (above 1.4V), the regulator is enabled and output voltage is present. When the EN pin is pulled low (below 0.4V), the regulator is disabled and output voltage is shut down.
To ensure the TPS3707-33DG4 operates within its thermal limits, make sure to provide adequate heat sinking, such as a copper plane or a heat sink, and keep the ambient temperature below 85°C. Also, ensure that the input voltage and output current are within the recommended specifications.
The TPS3707-33DG4 is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. If you need to operate the device in a high-temperature environment, consider using a heat sink or a thermally-enhanced package, and ensure that the device is properly derated for the operating temperature.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3707-33DG4 Overview

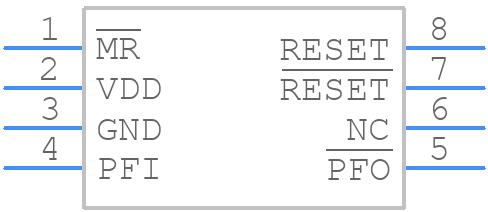

Use the download button to access the TPS3707-33DG4 schematic symbol, PCB footprint, and 3D model.
