RESET THRESHOLD VOLTAGE IS 4.55V; POWER ON RESET GENERATOR; MANUAL RESET INPUT
Adjustable Threshold:
NO
Analog IC - Other Type:
VOLTAGE SUPERVISOR/RESET IC
JESD-30 Code:
R-PDSO-G8
JESD-609 Code:
e4
Length:
4.9 mm
Moisture Sensitivity Level:
1
Number of Channels:
2
Number of Functions:
1
Number of Terminals:
8
Operating Temperature-Max:
85 °C
Operating Temperature-Min:
-40 °C
Package Body Material:
PLASTIC/EPOXY
Package Code:
SOP
Package Equivalence Code:
SOP8,.25
Package Shape:
RECTANGULAR
Package Style:
SMALL OUTLINE
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.75 mm
Supply Current-Max (Isup):
0.05 mA
Supply Voltage-Max (Vsup):
6 V
Supply Voltage-Min (Vsup):
2 V
Supply Voltage-Nom (Vsup):
5 V
Surface Mount:
YES
Technology:
CMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
1.27 mm
Terminal Position:
DUAL
Threshold Voltage-Nom:
+4.55V
Time@Peak Reflow Temperature-Max (s):
30
Width:
3.9 mm
TPS3707-50D Frequently Asked Questions (FAQs)
A good PCB layout for the TPS3707-50D involves placing the input capacitor close to the VIN pin, using a solid ground plane, and keeping the output capacitor close to the VOUT pin. Additionally, it's recommended to use a separate analog ground plane and to keep the power traces away from sensitive analog signals.
The input capacitor should have a low ESR and be rated for the maximum input voltage. A ceramic capacitor with a value of 1-10uF is a good choice. The output capacitor should also have a low ESR and be rated for the maximum output voltage. A ceramic capacitor with a value of 1-22uF is a good choice. The capacitor values can be adjusted based on the specific application requirements.
The TPS3707-50D has an operating ambient temperature range of -40°C to 125°C. However, the device can be operated at a higher temperature range with derating. It's recommended to consult the datasheet for more information on thermal derating.
To ensure stability, it's recommended to follow the layout guidelines, use a low-ESR output capacitor, and add a small ceramic capacitor (e.g. 10nF) between the VOUT and GND pins. Additionally, the input voltage should be well-regulated and the output load should be within the recommended range.
Yes, the TPS3707-50D is a high-reliability device that meets the requirements of various industries such as automotive, industrial, and medical. It's recommended to consult the datasheet and the Texas Instruments website for more information on the device's reliability and quality.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3707-50D Overview

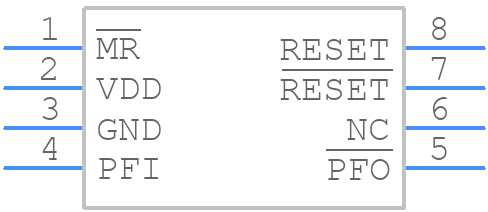

Use the download button to access the TPS3707-50D schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
