TPS3762D02OVDDFR - Texas Instruments

Description: Supervisory Circuits AUTOMOTIVE SUPERVISORY CIRCUIT

Download TPS3762D02OVDDFR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

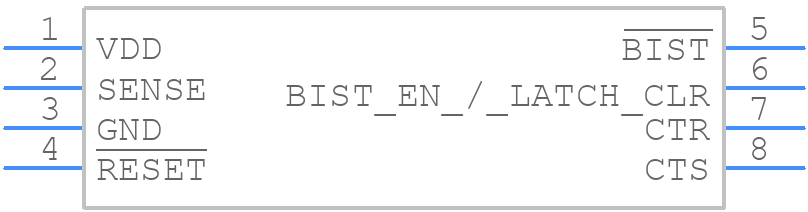

TPS3762D02OVDDFR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3762D02OVDDFR - Texas Instruments PCB footprint - SOT23 (8-Pin) - SOT23 (8-Pin) - DDF0008A
click to zoom
3D Models
TPS3762D02OVDDFR - Texas Instruments - 3D model - SOT23 (8-Pin) - DDF0008A
click to zoom

TPS3762D02OVDDFR Details

  • Manufacturer Part Number:

    TPS3762D02OVDDFR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Philippines

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    BAT BUP SW:N;MNL RST:Y;OV DET:Y;PW FL IP:N;PW FL IO:N;PW FL OP:N;PRG RST DLY:Y;UV DET:Y;WD:N;WWD:N

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    2.75 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    TSSOP

  • Package Equivalence Code:

    TSSOP8,.11

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.1 mm

  • Supply Current-Max (Isup):

    0.0081 mA

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    12 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    5

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS3762D02OVDDFR Frequently Asked Questions (FAQs)

  • The recommended layout and placement for the TPS3762D02OVDDFR involves placing the device close to the power source, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it is recommended to place a 10uF ceramic capacitor between the VIN and GND pins, and a 1uF ceramic capacitor between the VOUT and GND pins.
  • The output voltage of the TPS3762D02OVDDFR can be adjusted by connecting a resistor divider network between the VOUT and ADJ pins. The output voltage can be calculated using the formula: VOUT = 1.2V x (1 + R1/R2), where R1 and R2 are the resistors in the divider network.
  • The maximum input voltage that the TPS3762D02OVDDFR can handle is 15V. Exceeding this voltage may damage the device.
  • To ensure the TPS3762D02OVDDFR is stable and does not oscillate, it is recommended to use a minimum output capacitance of 10uF, and to place a 1uF ceramic capacitor between the VOUT and GND pins. Additionally, the input voltage should be well-regulated and free of noise.
  • The typical dropout voltage of the TPS3762D02OVDDFR is around 1.5V. This means that the input voltage should be at least 1.5V higher than the output voltage to ensure proper regulation.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3762D02OVDDFR Overview

Use the download button to access the TPS3762D02OVDDFR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
