TPS3780CDBVR - Texas Instruments

Description: Low Power, Dual Voltage Detector in Small µSON package

Download TPS3780CDBVR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback

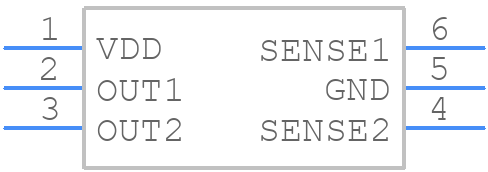

Symbol
TPS3780CDBVR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3780CDBVR - Texas Instruments PCB footprint - SOT23 (6-Pin) - SOT23 (6-Pin) - DBV0006A
click to zoom
3D Models
TPS3780CDBVR - Texas Instruments - 3D model - SOT23 (6-Pin) - DBV0006A
click to zoom

TPS3780CDBVR Details

  • Manufacturer Part Number:

    TPS3780CDBVR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Package Description:

    SOT-23-6

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE DETECTOR

  • JESD-30 Code:

    R-PDSO-G6

  • JESD-609 Code:

    e4

  • Length:

    2.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    6

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    LSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, LOW PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.45 mm

  • Supply Current-Max (Isup):

    0.0065 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.5 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.95 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.074V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    1.6 mm

TPS3780CDBVR Frequently Asked Questions (FAQs)

  • The recommended layout for the TPS3780CDBVR involves placing the device close to the power source, using a solid ground plane, and keeping the input and output capacitors close to the device. Additionally, the layout should minimize the loop area of the input and output traces to reduce electromagnetic interference (EMI).
  • The choice of input and output capacitors for the TPS3780CDBVR depends on the specific application requirements. In general, low-ESR capacitors with a high ripple current rating are recommended. The input capacitor should be at least 10uF, and the output capacitor should be at least 22uF. The capacitor values can be adjusted based on the output voltage and current requirements.
  • The TPS3780CDBVR has an operating temperature range of -40°C to 125°C. However, the device's performance and reliability may be affected at extreme temperatures. It is recommended to operate the device within the recommended temperature range for optimal performance.
  • The TPS3780CDBVR has a built-in overvoltage protection (OVP) feature that can be enabled by connecting the OVP pin to a voltage source. The OVP threshold can be set by selecting the appropriate resistor values for the OVP pin. The device will shut down if the output voltage exceeds the set OVP threshold.
  • Yes, the TPS3780CDBVR is suitable for high-reliability applications. The device is built with a robust design and has undergone rigorous testing to ensure its reliability and performance. However, it is recommended to follow proper design and layout guidelines, as well as to implement adequate thermal management and fault protection to ensure the device's reliability in high-reliability applications.
