TPS37A010122DSKR - Texas Instruments

Description: Supervisory Circuits

Download TPS37A010122DSKR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

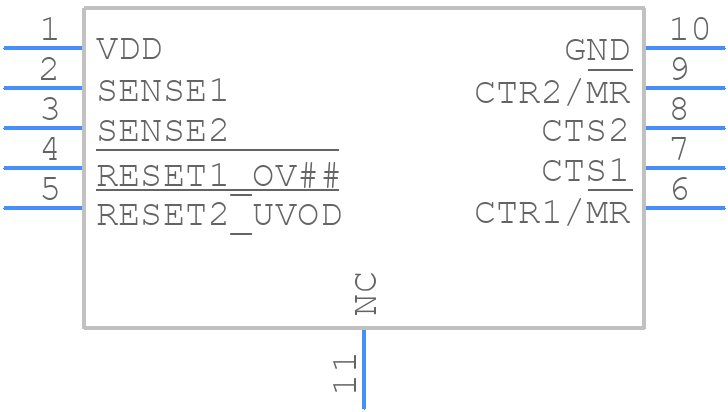

TPS37A010122DSKR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS37A010122DSKR - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DSK0010A_1
click to zoom
3D Models
TPS37A010122DSKR - Texas Instruments - 3D model - Small Outline No-lead - DSK0010A_1
click to zoom

TPS37A010122DSKR Details

  • Manufacturer Part Number:

    TPS37A010122DSKR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    UNDER/OVERVOLTAGE SUPERVISOR

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    2.5 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    2

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Equivalence Code:

    SOLCC10,.1,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    0.8 mm

  • Supply Current-Max (Isup):

    0.0026 mA

  • Supply Voltage-Max (Vsup):

    65 V

  • Supply Voltage-Min (Vsup):

    2.7 V

  • Supply Voltage-Nom (Vsup):

    16 V

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +0.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    2.5 mm

TPS37A010122DSKR Frequently Asked Questions (FAQs)

  • TI recommends a 2-layer PCB with a solid ground plane on the bottom layer and a thermal relief pattern on the top layer to minimize thermal resistance. A minimum of 2 oz copper thickness is recommended for the top layer.
  • To ensure accurate voltage sensing, use a Kelvin connection (separate sense lines) to the voltage input pins, and keep the sense lines as short as possible to minimize voltage drops. Also, ensure that the sense lines are not routed near high-current or high-noise areas on the PCB.
  • The maximum allowed voltage on the EN pin is 6 V. Exceeding this voltage may damage the device. It's recommended to use a voltage divider or a level shifter if the enable signal is coming from a higher voltage source.
  • The power dissipation of the TPS37A010122DSKR can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. The junction-to-ambient thermal resistance (RθJA) should also be considered when calculating the power dissipation.
  • TI recommends using a low-ESR ceramic capacitor with a value of 10 μF to 22 μF for the input capacitor. The capacitor should be placed as close to the VIN pin as possible to minimize noise and ripple.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS37A010122DSKR Overview

Use the download button to access the TPS37A010122DSKR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS37, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
