TPS3850G33DRCT - Texas Instruments

Description: Precision window supervisor for OV & UV monitoring with window watchdog timer & programmable delay

Download TPS3850G33DRCT Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

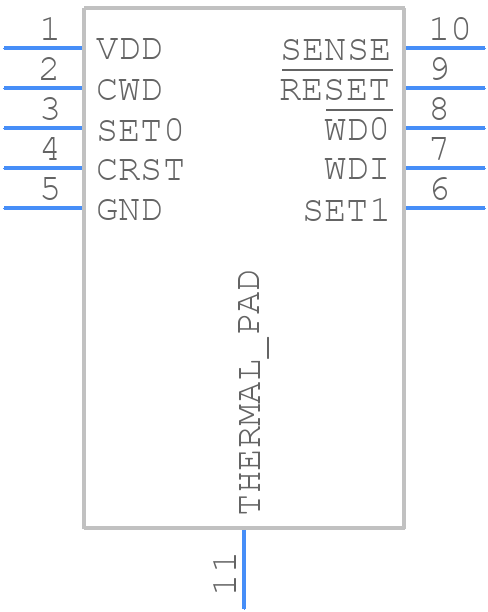

TPS3850G33DRCT - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3850G33DRCT - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRC0010J
click to zoom
3D Models
TPS3850G33DRCT - Texas Instruments - 3D model - Small Outline No-lead - DRC0010J
click to zoom

TPS3850G33DRCT Details

  • Manufacturer Part Number:

    TPS3850G33DRCT

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2016-10-20

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.019 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3850G33DRCT Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator design, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
  • To ensure stability, make sure to follow the recommended output capacitor values and ESR ranges, and use a capacitor with a low equivalent series resistance (ESR). Additionally, avoid using capacitors with high ESL (equivalent series inductance) and ensure the input capacitor is properly decoupled.
  • While the datasheet specifies a maximum input voltage of 15V, it's recommended to derate the input voltage to 12V or lower to ensure reliable operation and minimize the risk of damage or failure.
  • The TPS3850G33DRCT is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating in high-temperature environments. Ensure proper heat sinking and follow the recommended thermal design guidelines.
  • Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout. However, it's also important to consider the device's quiescent current and any additional losses due to switching or other factors.
