TPS3850H33QDRCRQ1 - Texas Instruments

Description: Processor Supervisor 1 Active Low/Open Drain Automotive 10-Pin VSON EP T/R

Download TPS3850H33QDRCRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

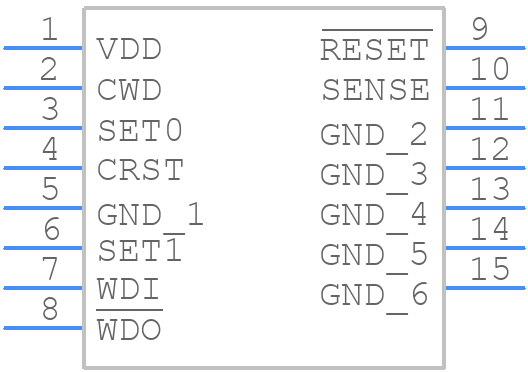

TPS3850H33QDRCRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3850H33QDRCRQ1 - Texas Instruments PCB footprint - Other - Other - DRC0010R
click to zoom
3D Models
TPS3850H33QDRCRQ1 - Texas Instruments - 3D model - Other - DRC0010R
click to zoom

TPS3850H33QDRCRQ1 Details

  • Manufacturer Part Number:

    TPS3850H33QDRCRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Date Of Intro:

    2017-02-01

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Adjustable Threshold:

    YES

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.019 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    3.3 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3850H33QDRCRQ1 Frequently Asked Questions (FAQs)

  • The DELAY pin is used to adjust the time it takes for the reset signal to be released after the voltage has risen above the threshold. This allows the system to stabilize before the reset signal is released.
  • The threshold voltage should be chosen based on the minimum operating voltage of the system. It should be set slightly higher than the minimum operating voltage to ensure that the system has enough time to respond to a voltage drop.
  • The main difference is the threshold voltage. The TPS3850H33QDRCRQ1 has a threshold voltage of 3.3V, while the TPS3808H33QDRCRQ1 has a threshold voltage of 3.08V. Choose the one that best fits your system's voltage requirements.
  • Yes, the TPS3850H33QDRCRQ1 can be used with a voltage regulator. In fact, it's a common practice to use a voltage supervisor with a voltage regulator to ensure that the system is properly reset in case of a voltage drop.
  • The reset timeout period can be calculated using the formula: t_reset = RDELAY * CDELAY, where RDELAY is the resistance connected to the DELAY pin and CDELAY is the capacitance connected to the DELAY pin.

Trust Checks

This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3850H33QDRCRQ1 Overview

Use the download button to access the TPS3850H33QDRCRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38, or try a keyword search, such as Power Management Circuits

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
