Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator design, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS3851H18EQDRBRQ1 is specified as ±2% in the datasheet. To calculate the output voltage tolerance, multiply the nominal output voltage (1.8V) by the tolerance percentage (2%). This gives a tolerance range of 1.764V to 1.836V.
The maximum input voltage that can be applied to the TPS3851H18EQDRBRQ1 is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
The TPS3851H18EQDRBRQ1 is an automotive-qualified device, meaning it meets the requirements of the AEC-Q100 standard for automotive-grade components. However, it's still important to review the device's specifications and ensure it meets the specific requirements of the target application.
To determine the power dissipation of the TPS3851H18EQDRBRQ1, calculate the difference between the input voltage and output voltage, and multiply it by the output current. Then, multiply the result by the device's efficiency (typically around 90% for this device). The resulting value is the power dissipation in watts.
Trust Checks
This model has been verified by system checks.
System Verified
Sponsored
TPS3851H18EQDRBRQ1 Overview

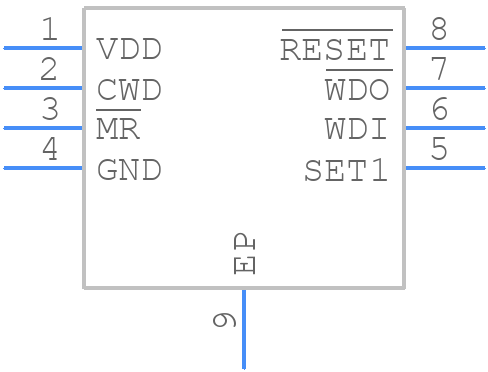

Use the download button to access the TPS3851H18EQDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
