Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator design, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
The output voltage tolerance of the TPS3851H30SQDRBRQ1 is specified as ±2% in the datasheet. To calculate the output voltage tolerance, you can use the formula: Output Voltage Tolerance = (Output Voltage x Tolerance Percentage) / 100. For example, if the output voltage is 3.0V, the output voltage tolerance would be ±60mV.
The maximum input voltage of the TPS3851H30SQDRBRQ1 is 15V, as specified in the datasheet. However, it's recommended to operate the device within the recommended input voltage range of 3.5V to 12V to ensure optimal performance and reliability.
To ensure stability and prevent oscillation, it's essential to follow the recommended capacitor values and types specified in the datasheet. Additionally, make sure to place the input and output capacitors close to the device, and use a solid ground plane to reduce noise and EMI.
The thermal shutdown temperature of the TPS3851H30SQDRBRQ1 is typically around 150°C to 160°C, as specified in the datasheet. When the device exceeds this temperature, it will shut down to prevent damage and automatically restart when the temperature drops below the thermal shutdown threshold.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3851H30SQDRBRQ1 Overview

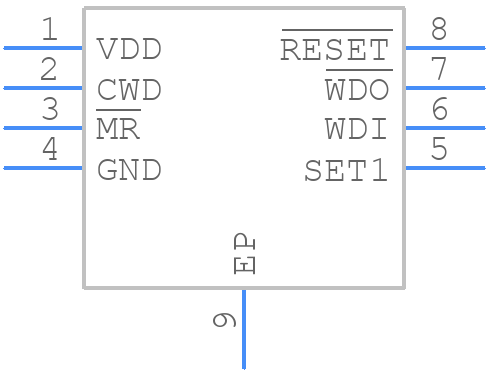

Use the download button to access the TPS3851H30SQDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
