TPS3852G18QDRBRQ1 - Texas Instruments

Description: Automotive High-Accuracy Voltage Supervisor With Integrated Watchdog Timer

Download TPS3852G18QDRBRQ1 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

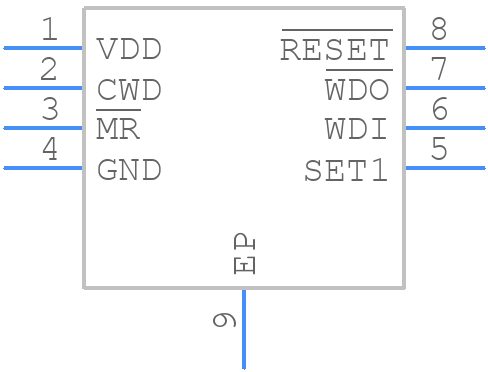

TPS3852G18QDRBRQ1 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS3852G18QDRBRQ1 - Texas Instruments PCB footprint - Small Outline No-lead - Small Outline No-lead - DRB0008F
click to zoom
3D Models
TPS3852G18QDRBRQ1 - Texas Instruments - 3D model - Small Outline No-lead - DRB0008F
click to zoom

TPS3852G18QDRBRQ1 Details

  • Manufacturer Part Number:

    TPS3852G18QDRBRQ1

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Mainland China, Thailand

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Additional Feature:

    THRESHOLD VOLTAGE IS 1.8V

  • Adjustable Threshold:

    NO

  • Analog IC - Other Type:

    VOLTAGE SUPERVISOR/RESET IC

  • JESD-30 Code:

    S-PDSO-N8

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    2

  • Number of Channels:

    1

  • Number of Functions:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -40 °C

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HVSON

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, VERY THIN PROFILE

  • Peak Reflow Temperature (Cel):

    260

  • Screening Level:

    AEC-Q100

  • Seated Height-Max:

    1 mm

  • Supply Current-Max (Isup):

    0.019 mA

  • Supply Voltage-Max (Vsup):

    6.5 V

  • Supply Voltage-Min (Vsup):

    1.6 V

  • Supply Voltage-Nom (Vsup):

    5 V

  • Surface Mount:

    YES

  • Temperature Grade:

    AUTOMOTIVE

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    NO LEAD

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Threshold Voltage-Nom:

    +1.8V

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS3852G18QDRBRQ1 Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator layout, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths to reduce noise and EMI.
  • The output voltage tolerance of the TPS3852G18QDRBRQ1 is specified as ±2% in the datasheet. To calculate the output voltage tolerance, multiply the nominal output voltage (1.8V) by the tolerance percentage (±2%). This gives a range of 1.764V to 1.836V.
  • The maximum input voltage that can be applied to the TPS3852G18QDRBRQ1 is 6.5V, as specified in the datasheet. Exceeding this voltage may damage the device or affect its performance.
  • The TPS3852G18QDRBRQ1 is an automotive-qualified device, meaning it meets the requirements of the AEC-Q100 standard for automotive-grade components. However, it's still important to review the device's specifications and ensure it meets the specific requirements of your automotive application.
  • To determine the power dissipation of the TPS3852G18QDRBRQ1, you need to calculate the input power (VIN x IIN) and subtract the output power (VOUT x IOUT). The resulting value is the power dissipation of the device. You can then use the thermal resistance (RθJA) specified in the datasheet to calculate the junction temperature of the device.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS3852G18QDRBRQ1 Overview

Use the download button to access the TPS3852G18QDRBRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38, or try a keyword search, such as Power Management Circuits
