Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for voltage regulator design, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
To ensure stability, make sure to follow the recommended output capacitor values and types, and keep the output capacitor's ESR (Equivalent Series Resistance) within the recommended range. Additionally, avoid using capacitors with high ESL (Equivalent Series Inductance) and ensure the input capacitor is properly decoupled.
While the datasheet specifies a maximum input voltage of 6.5V, it's recommended to derate the input voltage to 6.2V or lower to ensure reliable operation and prevent damage to the device.
The TPS3852H33DRBT is rated for operation up to 125°C, but it's essential to consider the device's power dissipation and thermal management when operating at high temperatures. Ensure proper heat sinking and follow the recommended thermal design guidelines to prevent overheating.
Power dissipation can be calculated using the formula: Pd = (Vin - Vout) x Iout + (Vin x Iq), where Vin is the input voltage, Vout is the output voltage, Iout is the output current, and Iq is the quiescent current. Make sure to consider the device's thermal resistance and maximum junction temperature when calculating power dissipation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS3852H33DRBT Overview

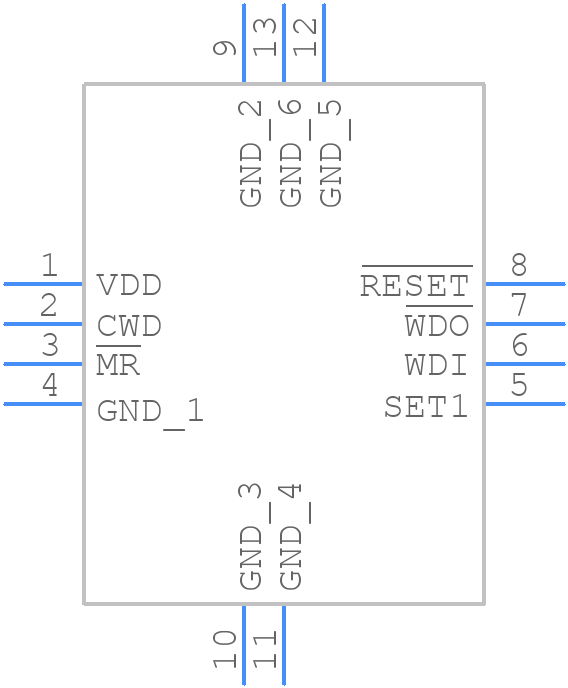

Use the download button to access the TPS3852H33DRBT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
