For optimal thermal performance, it is recommended to have a solid ground plane on the PCB, and to place thermal vias under the device to dissipate heat efficiently. A minimum of 2-3 thermal vias with a diameter of 0.3-0.5 mm is recommended.
To ensure proper power-up and configuration, follow the recommended power-up sequence: 1) Apply VCC, 2) Apply VDD, and 3) Configure the device through the I2C interface. Also, ensure that the EN pin is pulled high to enable the device.
To reduce EMI and noise, use a 4-layer PCB with a solid ground plane, and place a 10-100 nF decoupling capacitor between VCC and GND. Additionally, use a common-mode choke or ferrite bead on the input lines to filter out high-frequency noise.
The TPS386596L33DGKT has built-in overvoltage protection (OVP) and undervoltage lockout (UVLO). For additional fault detection, use the FAULT pin to monitor for overcurrent, overvoltage, and undervoltage conditions. You can also use external circuitry to detect and respond to faults.
The device has a junction-to-ambient thermal resistance (RθJA) of 24°C/W. Ensure good airflow around the device, and consider using a heat sink or thermal interface material to reduce the junction temperature. Also, avoid placing heat-sensitive components near the device.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS386596L33DGKT Overview

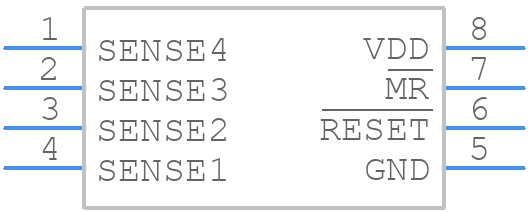

Use the download button to access the TPS386596L33DGKT schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS38,
or try a keyword search, such as Power Management Circuits
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
