TPS40021MPWPREP - Texas Instruments

Description: Enhanced Product Synchronous Buck Controller

Download TPS40021MPWPREP Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

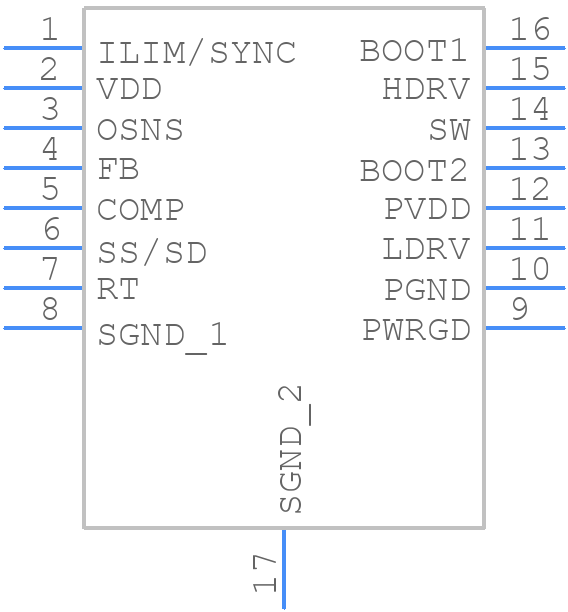

TPS40021MPWPREP - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40021MPWPREP - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C
click to zoom
3D Models
TPS40021MPWPREP - Texas Instruments - 3D model - Small Outline Packages - PWP0016C
click to zoom

TPS40021MPWPREP Details

  • Manufacturer Part Number:

    TPS40021MPWPREP

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    5.5 V

  • Input Voltage-Min:

    2.25 V

  • Input Voltage-Nom:

    5 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    125 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    25 A

  • Output Voltage-Max:

    4 V

  • Output Voltage-Min:

    0.7 V

  • Output Voltage-Nom:

    4.9 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS40021MPWPREP Frequently Asked Questions (FAQs)

  • Texas Instruments provides a recommended PCB layout in the TPS40021 application note (SLVAUH7) to ensure optimal thermal performance. The layout includes guidelines for thermal vias, copper pours, and component placement.
  • The input and output capacitor selection is critical for the TPS40021's performance and stability. TI provides a capacitor selection guide in the datasheet, but it's recommended to use TI's Webench Power Designer tool for a more accurate and efficient selection process.
  • The TPS40021 is rated for operation up to 125°C (TJ), but it's essential to consider the junction-to-ambient thermal resistance (θJA) and ensure proper thermal management to prevent overheating. TI provides thermal derating curves in the datasheet to help with this calculation.
  • The TPS40021 has built-in OCP and SCP features. To implement these features, you need to connect the OCSET pin to a resistive divider that sets the OCP threshold. TI provides detailed guidance on how to set up OCP and SCP in the datasheet and application notes.
  • The TPS40021 is designed to meet the requirements of Industry 4.0 and industrial automation applications. It provides a high level of integration, reliability, and performance, making it suitable for use in industrial power supplies, motor control units, and other industrial automation systems.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS40021MPWPREP Overview

Use the download button to access the TPS40021MPWPREP schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
