TPS40060PWPR - Texas Instruments

Description: Wide Input (10V-55V) up to 1 MHz Frequency Synchronous Buck Controller, source only

Download TPS40060PWPR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

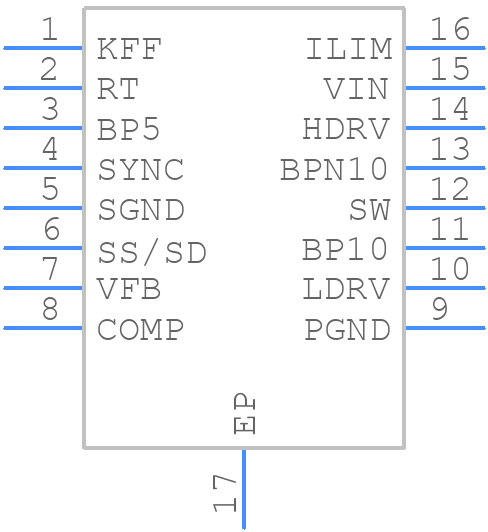

TPS40060PWPR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40060PWPR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - PWP0016C-021
click to zoom
3D Models
TPS40060PWPR - Texas Instruments - 3D model - Small Outline Packages - PWP0016C-021
click to zoom

TPS40060PWPR Details

  • Manufacturer Part Number:

    TPS40060PWPR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    16

  • Country Of Origin:

    Taiwan

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    55 V

  • Input Voltage-Min:

    10 V

  • Input Voltage-Nom:

    24 V

  • JESD-30 Code:

    R-PDSO-G16

  • JESD-609 Code:

    e4

  • Length:

    5 mm

  • Moisture Sensitivity Level:

    2

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    16

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current-Max:

    10 A

  • Output Voltage-Max:

    45 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.2 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    PUSH-PULL

  • Switching Frequency-Max:

    1000 kHz

  • Technology:

    BICMOS

  • Temperature Grade:

    INDUSTRIAL

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.65 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    4.4 mm

TPS40060PWPR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40060PWPR involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the high-current paths. TI provides a recommended PCB layout in the datasheet and application notes.
  • The selection of input and output capacitors depends on the specific application requirements. Generally, low-ESR capacitors with a high ripple current rating are recommended. TI provides guidelines for capacitor selection in the datasheet and application notes.
  • The TPS40060PWPR is rated for operation from -40°C to 150°C, but the maximum ambient temperature range depends on the specific application and cooling conditions. Engineers should consult the datasheet and thermal design guidelines to ensure reliable operation.
  • Proper thermal management involves providing adequate heat sinking, using thermal interface materials, and ensuring good airflow. Engineers should consult the datasheet and thermal design guidelines to ensure the device operates within its recommended temperature range.
  • Key considerations for EMI filtering and shielding include using a common-mode choke, adding EMI filters, and shielding the device and PCB. Engineers should consult the datasheet and application notes for specific guidelines on EMI mitigation.
