SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH
Peak Reflow Temperature (Cel):
260
Qualification Status:
Not Qualified
Seated Height-Max:
1.2 mm
Surface Mount:
YES
Switcher Configuration:
PUSH-PULL
Switching Frequency-Max:
1000 kHz
Technology:
BICMOS
Temperature Grade:
INDUSTRIAL
Terminal Finish:
Nickel/Palladium/Gold (Ni/Pd/Au)
Terminal Form:
GULL WING
Terminal Pitch:
0.65 mm
Terminal Position:
DUAL
Time@Peak Reflow Temperature-Max (s):
30
Width:
4.4 mm
TPS40060PWPRG4 Frequently Asked Questions (FAQs)
Texas Instruments provides a recommended PCB layout in the TPS40060PWPRG4 datasheet (section 10.2) and in the application note SLUA623. It's essential to follow these guidelines to ensure optimal thermal performance and minimize thermal resistance.
The input capacitor selection depends on the input voltage, current, and frequency. TI recommends using a low-ESR capacitor with a minimum capacitance of 10uF and a voltage rating of at least 1.5 times the maximum input voltage. Refer to the datasheet (section 7.3) and the application note SLUA623 for more information.
The maximum output current capability of the TPS40060PWPRG4 is 6A. However, the actual output current depends on the input voltage, output voltage, and thermal conditions. It's essential to check the device's thermal performance and power dissipation to ensure reliable operation.
The TPS40060PWPRG4 has a built-in overcurrent protection feature. To implement OCP, connect a sense resistor (Rs) between the output pin and the GND pin. The device will limit the output current to the programmed value (set by the OCP threshold pin) when the voltage across Rs exceeds the OCP threshold voltage.
The EN (enable) pin is used to enable or disable the device. When the EN pin is high, the device is enabled, and when it's low, the device is disabled. This pin can be used to implement power sequencing, shutdown, or low-power modes in your system.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40060PWPRG4 Overview

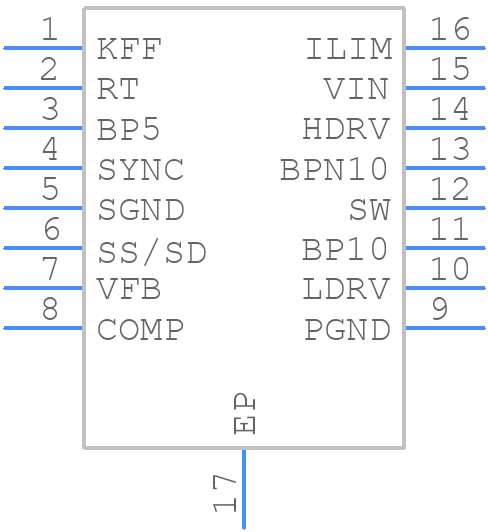

Use the download button to access the TPS40060PWPRG4 schematic symbol, PCB footprint, and 3D model.
