Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general high-frequency PCB design guidelines, such as keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing trace lengths and widths.
The selection of input and output capacitors depends on the specific application requirements, such as the input voltage range, output voltage, and ripple current. A good starting point is to use X7R or X5R ceramic capacitors with a voltage rating of at least 1.5 times the maximum input voltage. The output capacitor should be selected based on the output voltage and ripple current requirements.
The TPS40180RGER is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within the recommended temperature range to ensure reliability and performance.
To ensure stability, it's essential to follow the recommended PCB layout and component selection guidelines, including the use of a compensation capacitor (CC) and a feedback resistor (RF). The values of these components can be calculated using the equations provided in the datasheet or by using the Texas Instruments WEBENCH online design tool.
The TPS40180RGER is capable of delivering up to 8A of output current, but the actual output current capability depends on the input voltage, output voltage, and thermal design of the system. It's recommended to follow the thermal design guidelines in the datasheet and to ensure that the device is operated within the recommended operating conditions to ensure reliability and performance.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40180RGER Overview

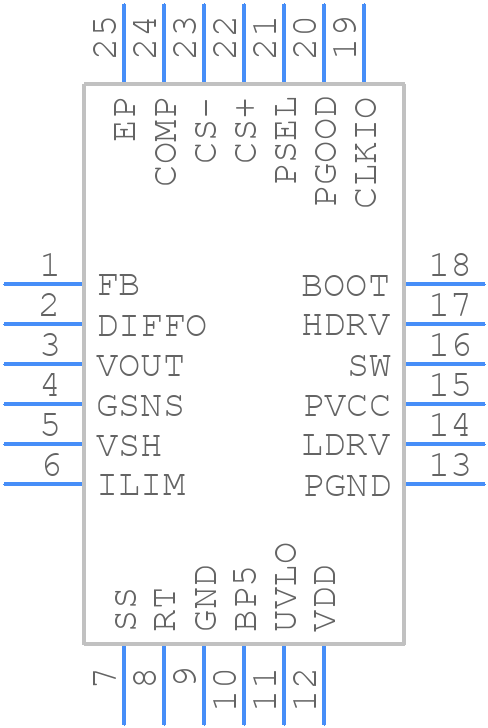

Use the download button to access the TPS40180RGER schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
