A good PCB layout for the TPS40200GDR involves placing the input and output capacitors close to the device, using a solid ground plane, and keeping the high-current paths short and wide. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane to minimize noise and EMI.
The choice of input and output capacitors for the TPS40200GDR depends on the specific application requirements. In general, it's recommended to use low-ESR capacitors with a high ripple current rating. For the input capacitor, a 10uF to 22uF ceramic capacitor is suitable, while for the output capacitor, a 10uF to 47uF ceramic capacitor is recommended.
The TPS40200GDR is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the power dissipation of the device. In general, it's recommended to keep the ambient temperature below 85°C to ensure reliable operation.
The power dissipation of the TPS40200GDR can be calculated using the formula: Pd = (Vin - Vout) x Iout x Efficiency. The efficiency of the device can be obtained from the datasheet or the application notes. It's recommended to use a thermal pad and a heat sink to dissipate the heat generated by the device.
When handling the TPS40200GDR, it's essential to take precautions to prevent damage from electrostatic discharge (ESD). Use an ESD wrist strap or mat, and handle the device by the body or pins, avoiding touching the die. Also, avoid bending or flexing the leads, and use a soldering iron with a temperature-controlled tip to prevent overheating.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40200GDR Overview

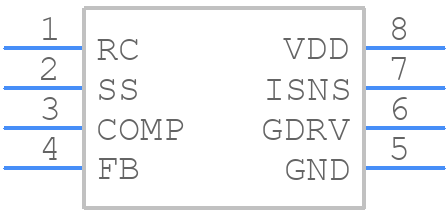

Use the download button to access the TPS40200GDR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
