TPS40200HD - Texas Instruments

Description: High Temperature Wide Input Non-Synchronous Buck DC/DC Controller

Download TPS40200HD Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

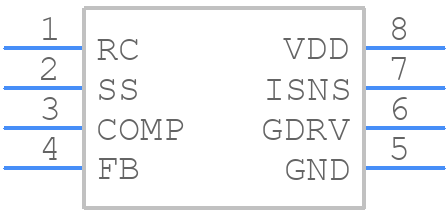

TPS40200HD - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS40200HD - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - D
click to zoom
3D Models
TPS40200HD - Texas Instruments - 3D model - Small Outline Packages - D
click to zoom

TPS40200HD Details

  • Manufacturer Part Number:

    TPS40200HD

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    SOIC

  • Pin Count:

    8

  • Country Of Origin:

    Malaysia

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Analog IC - Other Type:

    SWITCHING CONTROLLER

  • Control Mode:

    VOLTAGE-MODE

  • Control Technique:

    PULSE WIDTH MODULATION

  • Input Voltage-Max:

    52 V

  • Input Voltage-Min:

    4.5 V

  • Input Voltage-Nom:

    12 V

  • JESD-30 Code:

    R-PDSO-G8

  • JESD-609 Code:

    e4

  • Length:

    4.9 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    8

  • Operating Temperature-Max:

    175 °C

  • Operating Temperature-Min:

    -55 °C

  • Output Current-Max:

    3 A

  • Output Voltage-Max:

    46 V

  • Output Voltage-Min:

    0.7 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    SOP

  • Package Shape:

    RECTANGULAR

  • Package Style:

    SMALL OUTLINE

  • Peak Reflow Temperature (Cel):

    260

  • Qualification Status:

    Not Qualified

  • Seated Height-Max:

    1.75 mm

  • Surface Mount:

    YES

  • Switcher Configuration:

    SINGLE

  • Switching Frequency-Max:

    500 kHz

  • Temperature Grade:

    MILITARY

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    1.27 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3.9 mm

TPS40200HD Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS40200HD involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a separate analog and digital ground plane to reduce noise coupling.
  • To ensure stability, it's essential to follow the recommended component values and PCB layout guidelines. Additionally, the output capacitor should be selected based on the output voltage and current requirements. A minimum output capacitance of 10uF is recommended, and the ESR of the capacitor should be less than 1 ohm.
  • The TPS40200HD can handle input voltages up to 60V, but it's recommended to limit the input voltage to 40V for optimal performance and reliability.
  • The TPS40200HD is rated for operation up to 125°C, but the device's performance and reliability may degrade at high temperatures. It's recommended to derate the output current and voltage at high temperatures to ensure reliable operation.
  • The TPS40200HD has built-in overcurrent protection, but it's recommended to add external protection components such as fuses or PTC resistors to protect the device from overcurrent and overvoltage conditions. Additionally, a voltage supervisor or a voltage monitor can be used to detect overvoltage conditions.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS40200HD Overview

Use the download button to access the TPS40200HD schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40, or try a keyword search, such as Switching Regulator or Controllers
