A good PCB layout for the TPS40200QDRQ1 involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. Additionally, it's recommended to use a 4-layer PCB with a dedicated power plane and a dedicated ground plane.
The choice of input and output capacitors for the TPS40200QDRQ1 depends on the specific application requirements. In general, X5R or X7R ceramic capacitors with a voltage rating of at least 2x the input voltage are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor.
The TPS40200QDRQ1 is rated for operation from -40°C to 125°C, but the maximum ambient temperature range depends on the specific application and the thermal design of the system. In general, it's recommended to keep the ambient temperature below 85°C for optimal performance and reliability.
Proper thermal management for the TPS40200QDRQ1 involves providing a good thermal path from the device to a heat sink or a metal plate. This can be achieved using thermal interface materials, thermal tapes, or thermal greases. Additionally, ensuring good airflow around the device and using a heat sink with a thermal resistance of less than 10°C/W can help to keep the device temperature within the recommended range.
The recommended input voltage range for the TPS40200QDRQ1 is 2.7V to 5.5V, but the device can operate from 2.5V to 6V. However, operating the device outside the recommended range may affect its performance and reliability.
Trust Checks
This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40200QDRQ1 Overview

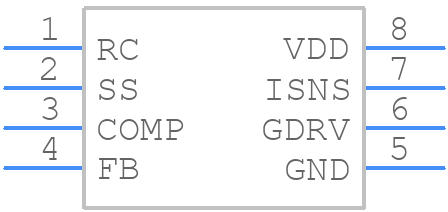

Use the download button to access the TPS40200QDRQ1 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
About Texas Instruments
Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
