The TPS40304ADRCR can handle input voltages up to 60V, but it's recommended to operate within the specified input voltage range of 4.5V to 40V for optimal performance.
To ensure stability, it's essential to follow the recommended layout and component selection guidelines, including the use of a suitable output capacitor and a low-ESR input capacitor. Additionally, the output voltage can be adjusted using the FB pin, and the output voltage stability can be improved by adding a capacitor in parallel with the feedback resistor.
The TPS40304ADRCR can provide a maximum output current of 4A, but this can be limited by the input voltage, output voltage, and thermal considerations. It's essential to check the device's thermal performance and adjust the output current accordingly to prevent overheating.
The TPS40304ADRCR has built-in overcurrent protection (OCP) and thermal shutdown (TSD) features. The OCP limits the output current to prevent damage, and the TSD turns off the device if the junction temperature exceeds 150°C. Additionally, it's recommended to add external protection components, such as fuses or PTC thermistors, to provide an extra layer of protection.
The TPS40304ADRCR is rated for operation up to 125°C, but its performance and reliability may degrade at high temperatures. It's essential to consider the device's thermal performance and adjust the operating conditions accordingly to prevent overheating and ensure reliable operation.
Trust Checks
This model has been provided by an expert contributor.
Expert Contribution
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored
TPS40304ADRCR Overview

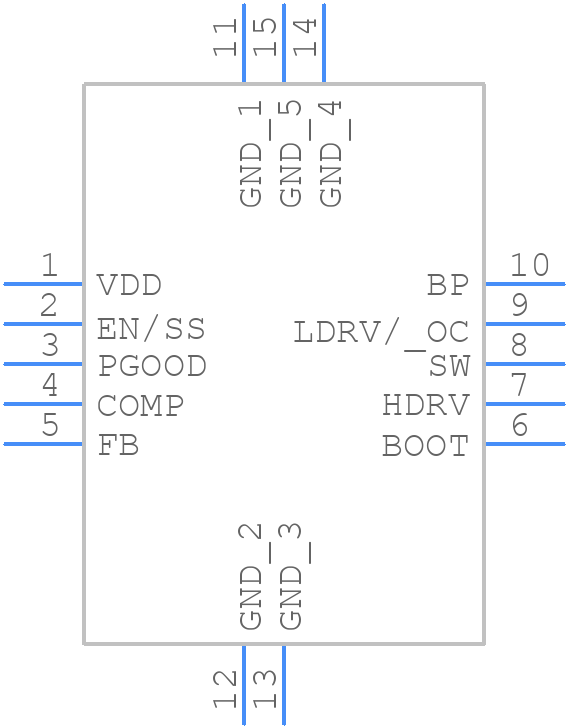

Use the download button to access the TPS40304ADRCR schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS40,
or try a keyword search, such as Switching Regulator or Controllers
