Part Image

TPS51100DGQG4 - Texas Instruments

Description: Power Management Specialised - PMIC 3A Source/Sink DDR Terminator Regulator

Download TPS51100DGQG4 Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

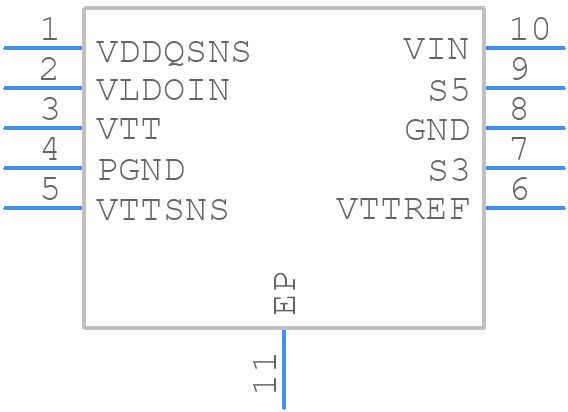

TPS51100DGQG4 - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51100DGQG4 - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
TPS51100DGQG4 - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

TPS51100DGQG4 Details

  • Manufacturer Part Number:

    TPS51100DGQG4

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.60

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.2 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TUBE

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51100DGQG4 Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51100DGQG4 involves keeping the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the traces between the device and the capacitors. TI provides a recommended PCB layout in the datasheet and in application notes.
  • The choice of input and output capacitors depends on the specific application requirements. Generally, X5R or X7R ceramic capacitors with a voltage rating of 10V or higher are recommended. The capacitance value should be at least 10uF for the input capacitor and 22uF for the output capacitor. TI provides guidance on capacitor selection in the datasheet and in application notes.
  • The TPS51100DGQG4 is rated for operation from -40°C to 125°C. However, the device's performance and reliability may degrade at extreme temperatures. It's essential to ensure proper thermal management and heat sinking to maintain a safe operating temperature.
  • Yes, the TPS51100DGQG4 is qualified for automotive and high-reliability applications. It meets the requirements of the AEC-Q100 standard for automotive applications and is suitable for use in harsh environments. However, it's essential to follow proper design and manufacturing guidelines to ensure the device meets the specific application requirements.
  • To troubleshoot issues with the TPS51100DGQG4, start by verifying the input voltage, output voltage, and current consumption. Check the PCB layout and component selection to ensure they meet the recommended guidelines. Use oscilloscopes and thermal imaging cameras to identify any anomalies. TI provides troubleshooting guides and application notes to help identify and resolve common issues.

Trust Checks

This model has been provided by community users.
Community Provided
This model has been verified by system checks.
System Verified
This model has been reviewed by community users.
Community Approved
Sponsored

TPS51100DGQG4 Overview

Use the download button to access the TPS51100DGQG4 schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51, or try a keyword search, such as Other Regulators

About Texas Instruments

Texas Instruments (TI) designs and manufactures semiconductors and integrated circuits for a wide range of applications. The company's product portfolio includes analog chips, which are essential for managing power and signal functions in electronic devices, and embedded processors, which serve as the brains in various systems, enabling functionality in everything from industrial equipment to consumer electronics. TI's innovations in semiconductor technology have made it a leader in the industry.
