TPS51100DGQR - Texas Instruments

Description: 3-A SINK/SOURCE DDR TERMINATION REGULATOR

Download TPS51100DGQR Model
Schematic
symbols
Schematic symbol is unavailable for download
PCB
footprints
PCB footprint is unavailable for download
3D
models
3D model is unavailable for download
Send part feedback
Symbol

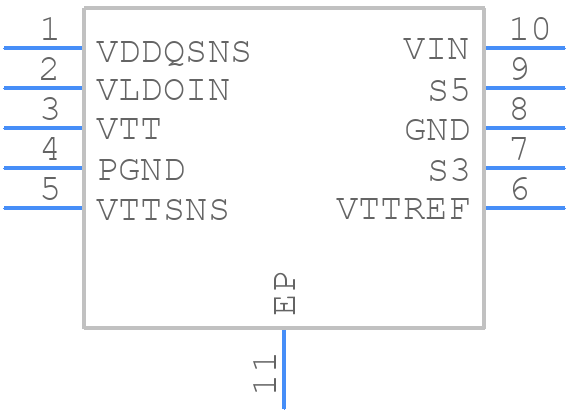

TPS51100DGQR - Texas Instruments - PCB symbol
click to zoom
PCB Footprints
TPS51100DGQR - Texas Instruments PCB footprint - Small Outline Packages - Small Outline Packages - DGQ0010D
click to zoom
3D Models
TPS51100DGQR - Texas Instruments - 3D model - Small Outline Packages - DGQ0010D
click to zoom

TPS51100DGQR Details

  • Manufacturer Part Number:

    TPS51100DGQR

  • Brand Name:

    Texas Instruments

  • Pbfree Code:

    Yes

  • Rohs Code:

    Yes

  • Part Life Cycle Code:

    Active

  • Part Package Code:

    MSOP

  • Pin Count:

    10

  • ECCN Code:

    EAR99

  • HTS Code:

    8542.39.00.90

  • Manufacturer:

    Texas Instruments

  • YTEOL:

    15

  • Input Voltage-Max:

    3.6 V

  • Input Voltage-Min:

    1.2 V

  • JESD-30 Code:

    S-PDSO-G10

  • JESD-609 Code:

    e4

  • Length:

    3 mm

  • Moisture Sensitivity Level:

    1

  • Number of Functions:

    1

  • Number of Outputs:

    1

  • Number of Terminals:

    10

  • Operating Temperature-Max:

    85 °C

  • Operating Temperature-Min:

    -40 °C

  • Output Current1-Max:

    3 A

  • Output Voltage1-Min:

    0.6 V

  • Package Body Material:

    PLASTIC/EPOXY

  • Package Code:

    HTSSOP

  • Package Equivalence Code:

    TSSOP10,.19,20

  • Package Shape:

    SQUARE

  • Package Style:

    SMALL OUTLINE, HEAT SINK/SLUG, THIN PROFILE, SHRINK PITCH

  • Packing Method:

    TR, 13 INCH

  • Peak Reflow Temperature (Cel):

    260

  • Regulator Type:

    DDR TERMINATION REGULATOR

  • Seated Height-Max:

    1.1 mm

  • Surface Mount:

    YES

  • Terminal Finish:

    Nickel/Palladium/Gold (Ni/Pd/Au)

  • Terminal Form:

    GULL WING

  • Terminal Pitch:

    0.5 mm

  • Terminal Position:

    DUAL

  • Time@Peak Reflow Temperature-Max (s):

    30

  • Width:

    3 mm

TPS51100DGQR Frequently Asked Questions (FAQs)

  • A good PCB layout for the TPS51100DGQR involves placing the input and output capacitors close to the device, using a solid ground plane, and minimizing the length of the input and output traces. A 4-layer PCB with a dedicated power plane and a solid ground plane is recommended.
  • Choose input capacitors with a low ESR (Equivalent Series Resistance) and a high ripple current rating. For output capacitors, choose ones with a low ESR and a high capacitance value. The recommended capacitance values are 10uF to 22uF for the input and 22uF to 47uF for the output.
  • The TPS51100DGQR can handle input voltages up to 18V, but it's recommended to keep the input voltage below 15V to ensure reliable operation and to prevent overheating.
  • The output voltage of the TPS51100DGQR can be adjusted by using a resistor divider network between the FB pin and the output voltage. The recommended resistor values are 1kΩ to 10kΩ for R1 and 1kΩ to 20kΩ for R2.
  • The TPS51100DGQR can deliver up to 1A of output current, but it's recommended to keep the output current below 800mA to ensure reliable operation and to prevent overheating.
