- Datasheet Download Datasheet
- Stock & Prices $ Price & Stock for TPS51461RGET
- Part Number TPS51461RGET
- Manufacturer Texas Instruments
- Pin Count 25
- Part Category Integrated Circuit
- Package Category Quad Flat No-Lead
- Footprint Name Quad Flat No-Lead - RGE0024c
- Released Date May 28, 2021
- Last Modified Date Aug 2, 2023 10:06 AM UTC
- Pinout / Pin List Click Here (Member Only)
TPS51461RGET Details
-
Manufacturer Part Number:
TPS51461RGET
-
Brand Name:
Texas Instruments
-
Pbfree Code:
Yes
-
Rohs Code:
Yes
-
Part Life Cycle Code:
Active
-
Part Package Code:
QFN
-
Pin Count:
24
-
Country Of Origin:
Philippines
-
ECCN Code:
EAR99
-
HTS Code:
8542.39.00.90
-
Manufacturer:
Texas Instruments
TPS51461RGET Frequently Asked Questions (FAQs)
-
Texas Instruments provides a recommended PCB layout in the datasheet, but it's also important to follow general best practices for switching regulator layout, such as keeping the input and output capacitors close to the IC, using a solid ground plane, and minimizing trace lengths and widths.
-
The selection of the inductor depends on the specific requirements of your application, such as the output current, switching frequency, and desired ripple current. Texas Instruments provides a list of recommended inductors in the datasheet, but you may also need to consider factors such as core material, inductance value, and DC resistance.
-
The TPS51461RGET is rated for operation up to 105°C ambient temperature, but the maximum junction temperature is 150°C. It's important to ensure that the device is properly cooled and that the thermal design of the system is adequate to prevent overheating.
-
Yes, the TPS51461RGET is qualified for automotive and high-reliability applications, and meets the requirements of the AEC-Q100 standard. However, it's important to follow the recommended design and testing guidelines to ensure that the device meets the specific requirements of your application.
-
Troubleshooting issues with the TPS51461RGET typically involves checking the PCB layout, component values, and input/output voltage and current waveforms. Texas Instruments provides a troubleshooting guide in the datasheet, and it's also recommended to consult the application notes and technical documentation for the device.
Trust Checks
Community Provided
System Verified
Community Approved
TPS51461RGET Overview

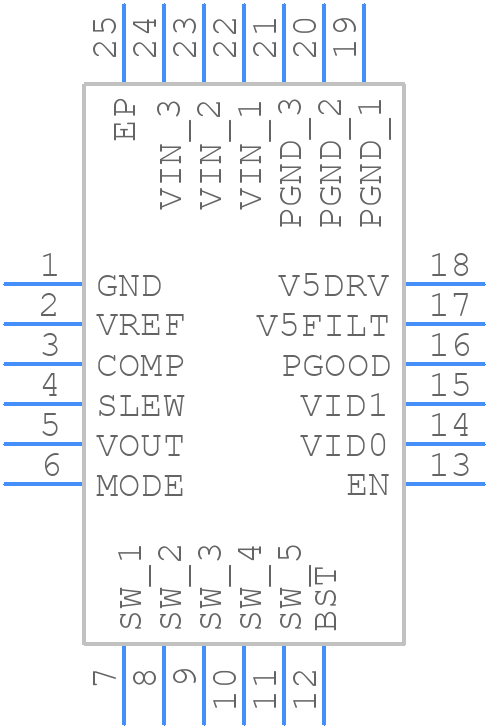

Use the download button to access the TPS51461RGET schematic symbol, PCB footprint, and 3D model.
To find more CAD model downloads similar to this part, try a partial part number search, like TPS51,
or try a keyword search, such as Switching Regulator or Controllers
